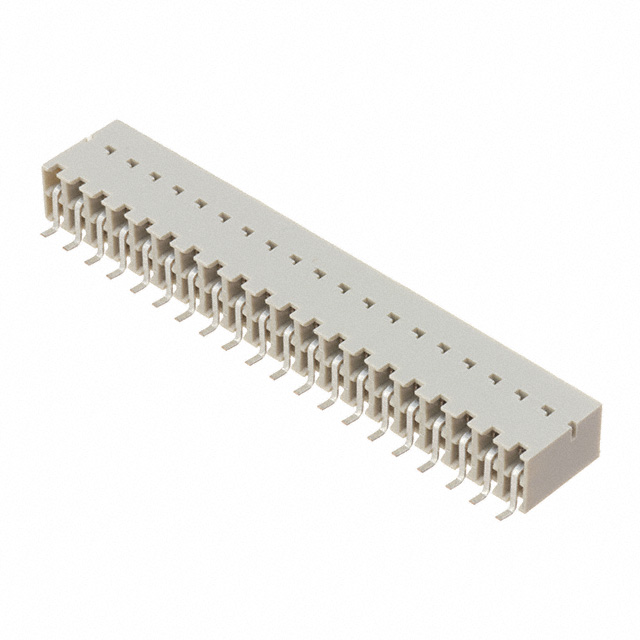

71609-320LF
Or copy the link below:
- Mfr.Part #
- 71609-320LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 40POS 0.1 GOLD SMD R/A
- Stock
- 49,632
- In Stock ：
- 49,632
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Pitch - Mating :
- 0.100 2.54mm
- Contact Material :
- Phosphor Bronze
- Connector Type :
- Receptacle
- Material Flammability Rating :
- UL94 V-0
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Max Operating Temperature :
- 125°C
- Mount :
- Surface Mount
- Max Voltage Rating (AC) :
- 1kV
- Mounting Type :
- Surface Mount, Right Angle
- Style :
- Board to Board
- Published :
- 2014
- Housing Material :
- Thermoplastic
- Termination :
- Solder
- Current Rating :
- 3A
- Voltage - Rated :
- 1kV
- Color :
- Grey
- Pitch :
- 2.54mm
- Housing Color :
- Grey
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 40
- Insulation Color :
- Gray
- Contact Type :
- Female Socket
- Contact Plating :
- Gold
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Contact Resistance :
- 20mOhm
- Factory Lead Time :
- 8 Weeks
- Insulation Height :
- 0.230 5.85mm
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Lead Free :
- Lead Free
- Number of Positions Loaded :
- All
- Depth :
- 8.4mm
- Contact Finish - Post :
- Tin
- Fastening Type :
- Push-Pull
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tube
- Orientation :
- RIGHT ANGLE
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Material :
- Thermoplastic, Glass Filled
- Gender :
- FEMALE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Min Operating Temperature :
- -65°C
- Series :
- Dubox™
- Number of Rows :
- 2
- Number of Contacts :
- 40
- Contact Shape :
- Square
- Length :
- 50.72mm
- Datasheets
- 71609-320LF
71609-320LF Documents
2 Rows Receptacle Solder Phosphor Bronze Surface Mount, Right Angle Tube Gold Thermoplastic, Glass Filled 40 Positions Female Socket
71609-320LF Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Surface Mount, Right Angle.A Tube case is used to package the product.A product of the Dubox™ Series, it belongs to the range of products of that series.A temperature below 125°C is best for using it.The device must run at -65°C degrees.This device may be used for the purpose of Automotive, General Purpose, Industrial, Telecommunications.Surface Mount represents the mounting point for the part.
71609-320LF Features
Dubox™ series
71609-320LF Applications
There are a lot of Amphenol ICC (FCI)
71609-320LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
