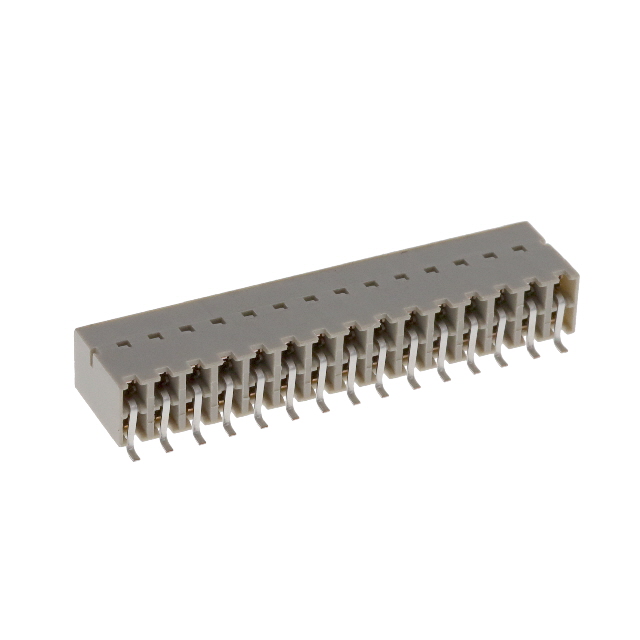

71609-315LF
Or copy the link below:
- Mfr.Part #
- 71609-315LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 30POS 0.1 GOLD SMD R/A
- Stock
- 82
- In Stock ：
- 82
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Type :
- Female Socket
- Length :
- 38.02mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Packaging :
- Tube
- Termination :
- Solder
- Max Voltage Rating (AC) :
- 1kV
- Color :
- Grey
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Board
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Color :
- Gray
- Contact Finish Thickness - Post :
- 78.7μin 2.00μm
- Insulation Height :
- 0.230 5.85mm
- JESD-609 Code :
- e3
- Connector Type :
- Receptacle
- Voltage - Rated :
- 1kV
- Series :
- Dubox™
- Max Operating Temperature :
- 125°C
- Mixed Contacts :
- No
- Depth :
- 8.4mm
- Contact Finish - Mating :
- Gold
- ECCN Code :
- EAR99
- Factory Lead Time :
- 8 Weeks
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Insulation Material :
- Thermoplastic, Glass Filled
- Contact Finish - Post :
- Tin
- Contact Resistance :
- 20mOhm
- Orientation :
- RIGHT ANGLE
- Width :
- 8.4mm
- Min Operating Temperature :
- -65°C
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions Loaded :
- All
- Number of Rows :
- 2
- RoHS Status :
- RoHS Compliant
- Lead Free :
- Lead Free
- Housing Material :
- Thermoplastic
- Current Rating :
- 3A
- Number of Positions :
- 30
- HTS Code :
- 8536.69.40.40
- Filter Feature :
- No
- IEC Conformance :
- No
- Pbfree Code :
- yes
- Fastening Type :
- Push-Pull
- Gender :
- FEMALE
- Mounting Type :
- Surface Mount, Right Angle
- Mount :
- Surface Mount
- Contact Shape :
- Square
- MIL Conformance :
- No
- DIN Conformance :
- No
- UL Flammability Code :
- 94V-0
- Total Number of Contacts :
- 30
- Contact Material :
- Phosphor Bronze
- Datasheets
- 71609-315LF
71609-315LF Documents
2 Rows Receptacle Solder Phosphor Bronze Surface Mount, Right Angle Tube Gold Thermoplastic, Glass Filled 30 Positions Female Socket
71609-315LF Overview
The packaging contains Receptacle.There is a Surface Mount, Right Angle mounting type for the device.This product is packaged in a case marked Tube.Product number Dubox™ belongs to the Dubox™ Series.Whenever the temperature is below 125°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to Automotive, General Purpose, Industrial, Telecommunications, there are other possible applications for the device.There is a Surface Mount mount on the part.
71609-315LF Features
Dubox™ series
71609-315LF Applications
There are a lot of Amphenol ICC (FCI)
71609-315LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
