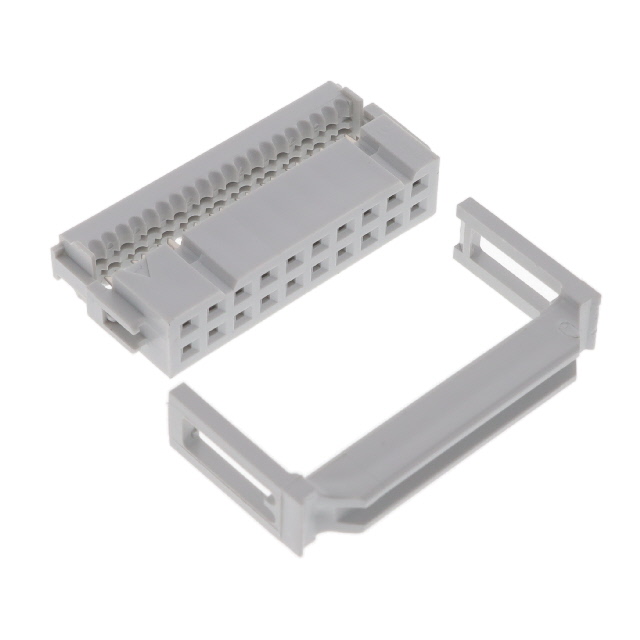

71600-320LF
Or copy the link below:
- Mfr.Part #
- 71600-320LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 20P IDC 28-30AWG GOLD
- Stock
- 212
- In Stock ：
- 212
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Free Hanging, Panel Mount
- Housing Color :
- Grey
- Width :
- 6.1mm
- Length :
- 29.87mm
- RoHS Status :
- RoHS Compliant
- Color :
- Gray
- Contact Design :
- PREASSEM CONN
- Orientation :
- RIGHT ANGLE
- Number of Rows :
- 2
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- MIL Conformance :
- No
- Cable Termination :
- IDC
- Contact Finish :
- Gold
- Housing Material :
- Thermoplastic
- Total Number of Contacts :
- 20
- Contact Resistance :
- 15mOhm
- Additional Feature :
- LATCHED, POLARIZED
- Mixed Contacts :
- No
- Reference Standard :
- UL, CSA
- Packaging :
- Tube
- Plating Thickness :
- 30μin
- Contact Type :
- Female Socket
- Max Operating Temperature :
- 105°C
- Lead Free :
- Lead Free
- UL Flammability Code :
- 94V-0
- ECCN Code :
- EAR99
- Wire Gauge (Min) :
- 28 AWG
- DIN Conformance :
- No
- Wire Gauge (Max) :
- 30 AWG
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging
- Reliability :
- COMMERCIAL
- Feature :
- Feed Through, Strain Relief
- Rated Current (Signal) :
- 1A
- Number of Positions :
- 20
- Gender :
- FEMALE
- Max Voltage Rating (AC) :
- 1kV
- HTS Code :
- 8536.69.40.40
- IEC Conformance :
- No
- Pitch :
- 0.100 2.54mm
- Wire Gauge :
- 28-30 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Contact Material :
- Bronze
- Polarization Key :
- POLARIZED HOUSING
- Termination :
- IDT
- Dielectric Withstanding Voltage :
- 1400VAC V
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Min Operating Temperature :
- -65°C
- Factory Lead Time :
- 8 Weeks
- Wire Type :
- Ribbon Cable
- Wire/Cable Type :
- Ribbon
- Insulation Resistance :
- 50000000000Ohm
- Depth :
- 7.1mm
- Connector Type :
- Receptacle
- Series :
- Quickie™
- Row Spacing :
- 0.100 (2.54mm)
- Datasheets
- 71600-320LF
