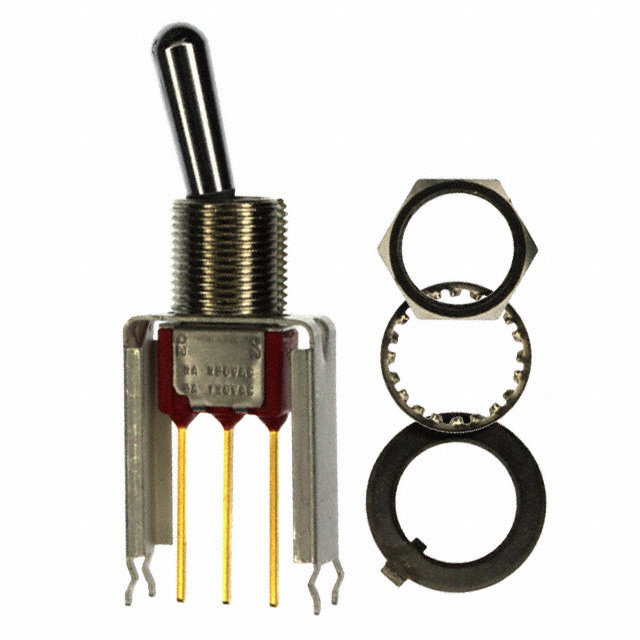

7108TCWV81GE

Manufacturer :

C&K

Product Category :

Termination Style :

PC Pin

Length :

19.56mm

Max Current Rating :

5A

Ingress Protection :

IP67 - Dust Tight, Waterproof

Contact Plating :

Gold, Silver

Contact Material :

Gold, Silver

Circuit :

SPDT

Series :

7000

Throw Configuration :

SP, SPDT

Actuator Length :

17.45mm

Mounting Type :

Panel Mount

Electrical Life :

40,000 Cycles

Packaging :

Tray

Orientation :

Straight

Termination :

PC Pin

Feature :

Epoxy Sealed Terminals

Switch Function :

On-Mom

Current Rating :

5A

Current Rating (Amps) :

5A AC/DC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated DC :

28V

Housing Material :

Stainless Steel

Actuator Material :

Brass, Chrome Plated

Voltage - Rated AC :

120V

Lead Free :

Lead Free

Ratings :

Dust Tight, IP67, Waterproof

Panel Cutout Dimensions :

Circular - 11.91mm Dia

Depth :

11.81mm

Factory Lead Time :

14 Weeks

Bushing Thread :

15/32-32

Operating Temperature :

-30°C~85°C

RoHS Status :

ROHS3 Compliant

Actuator Type :

Standard Round

Illumination Type :

Illuminated, Non-Illuminated

Published :

2014

Power Rating :

400mW

Max Voltage Rating (DC) :

28V

Mount :

Brackets, Panel

Illumination :

Non-Illuminated

Max Voltage Rating (AC) :

250V
