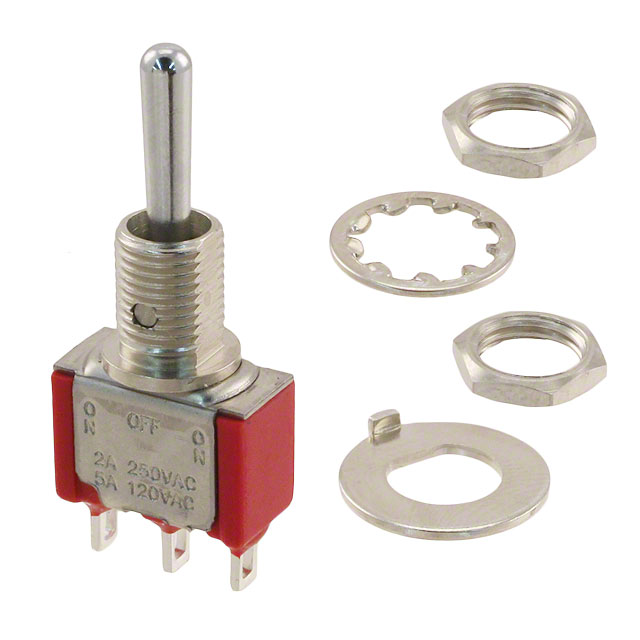

7107SPHZQE

Manufacturer :

C&K

Product Category :

Series :

7000

Voltage - Rated AC :

120V

Bushing Thread :

1/4-40

Max Operating Temperature :

85°C

Max Voltage Rating (AC) :

250V

Circuit :

SPDT

Operating Temperature :

-30°C~85°C

Current Rating :

5A

Switch Function :

On-Off-Mom

Contact Plating :

Gold, Silver

Termination :

Solder

Contact Material :

Silver

Electrical Life :

40,000 Cycles

Illumination :

Non-Illuminated

Orientation :

Straight

Termination Style :

Solder Lug

Throw Configuration :

SP, SPDT

Depth :

7.98mm

Published :

2012

RoHS Status :

ROHS3 Compliant

Actuator Material :

Brass, Chrome Plated

Housing Material :

Stainless Steel

Max Current Rating :

5A

Mounting Type :

Panel Mount

Actuator Length :

10.67mm

Max Voltage Rating (DC) :

28V

Illumination Type :

Illuminated, Non-Illuminated

Length :

12.7mm

Factory Lead Time :

14 Weeks

Voltage - Rated DC :

28V

Feature :

Epoxy Sealed Terminals

Panel Cutout Dimensions :

Circular - 6.35mm Dia

Mount :

Panel

Packaging :

Tray

Actuator Type :

Anti-Rotation

Current Rating (Amps) :

5A AC/DC

Min Operating Temperature :

-30°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
