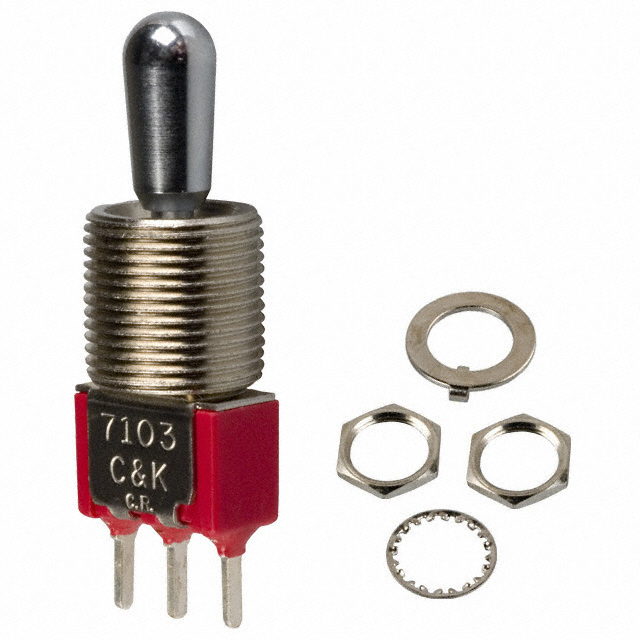

7103T1CWCQE

Manufacturer :

C&K

Product Category :

Orientation :

Straight

Max Voltage Rating (AC) :

250V

Termination Style :

PC Pin

Max Current Rating :

5A

Current Rating :

5A

Published :

2012

Mounting Type :

Panel Mount

Series :

7000

Bushing Thread :

15/32-32

RoHS Status :

ROHS3 Compliant

Contact Current Rating :

5A

Max Voltage Rating (DC) :

28V

Ratings :

Dust Tight, IP67, Waterproof

Actuator Material :

Brass, Chrome Plated

Operating Temperature :

-30°C~85°C

Current Rating (Amps) :

5A AC/DC

Throw Configuration :

SP, SPDT

Termination :

PC Pins

Radiation Hardening :

No

Voltage - Rated AC :

120V

Factory Lead Time :

14 Weeks

Actuator Length :

12.37mm

Mount :

Panel

Length :

12.7mm

Switch Function :

On-Off-On

Feature :

Epoxy Sealed Terminals

Lead Free :

Lead Free

Depth :

11.81mm

Illumination :

Non-Illuminated

Packaging :

Bulk

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Circuit :

SPDT

Electrical Life :

40,000 Cycles

Ingress Protection :

IP67 - Dust Tight, Waterproof

Panel Cutout Dimensions :

Circular - 11.91mm Dia

Actuator Type :

Standard Round

Voltage - Rated DC :

28V

Contact Material :

Silver

Housing Material :

Stainless Steel

Illumination Type :

Illuminated, Non-Illuminated
