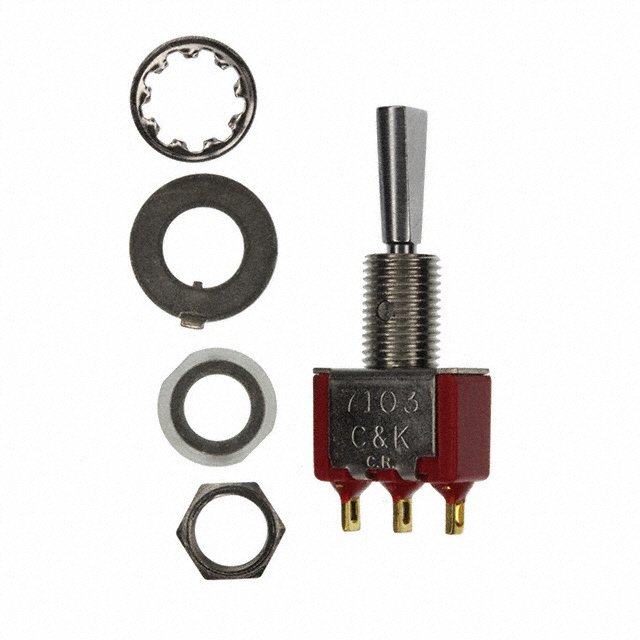

7103P3YZGE
Or copy the link below:
- Mfr.Part #
- 7103P3YZGE
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 5A 120V
- Stock
- 36
- In Stock ：
- 36
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Actuator Material :
- Brass
- Mount :
- Panel
- Termination :
- Solder
- Min Operating Temperature :
- -30°C
- Series :
- 7000
- Contact Plating :
- Gold
- Circuit :
- SPDT
- Actuator Type :
- Flat Anti-Rotation
- Max Operating Temperature :
- 85°C
- Orientation :
- Straight
- Feature :
- Black Actuator
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Packaging :
- Bulk
- Contact Material :
- Silver
- Switch Function :
- On-Off-On
- Actuator Length :
- 11.43mm
- Max Voltage Rating (DC) :
- 28V
- RoHS Status :
- ROHS3 Compliant
- Electrical Life :
- 40,000 Cycles
- Panel Cutout Dimensions :
- Circular - 6.35mm Dia
- Illumination :
- Non-Illuminated
- Illumination Type :
- Illuminated, Non-Illuminated
- Current Rating :
- 5A
- Published :
- 2012
- Max Voltage Rating (AC) :
- 250V
- Operating Temperature :
- -30°C~85°C
- Mounting Type :
- Panel Mount
- Housing Material :
- Stainless Steel
- Termination Style :
- Solder Lug
- Throw Configuration :
- SP, SPDT
- Voltage - Rated DC :
- 28V
- Current Rating (Amps) :
- 5A AC/DC
- Factory Lead Time :
- 14 Weeks
- Bushing Thread :
- 1/4-40
- Voltage - Rated AC :
- 120V
- Datasheets
- 7103P3YZGE
