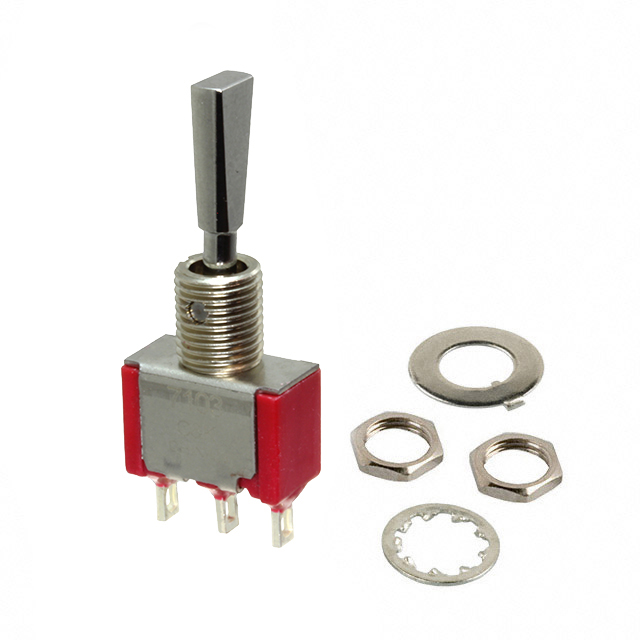

7103P3DZQE
Or copy the link below:
- Mfr.Part #
- 7103P3DZQE
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 5A 120V
- Stock
- 23
- In Stock ：
- 23
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Voltage - Rated AC :
- 120V
- Housing Material :
- Stainless Steel
- Mount :
- Panel
- Termination :
- Solder
- Max Voltage Rating (AC) :
- 250V
- Bushing Thread :
- 1/4-40
- Current Rating :
- 5A
- Electrical Life :
- 40,000 Cycles
- Panel Cutout Dimensions :
- Circular - 6.35mm Dia
- Orientation :
- Straight
- Max Voltage Rating (DC) :
- 28V
- Termination Style :
- Solder Lug
- Published :
- 2012
- Feature :
- Epoxy Sealed Terminals
- Illumination :
- Non-Illuminated
- Actuator Length :
- 13.21mm
- Actuator Material :
- Brass, Chrome Plated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- Silver
- Actuator Type :
- Flat Anti-Rotation
- Switch Function :
- On-Off-On
- Voltage - Rated DC :
- 28V
- Circuit :
- SPDT
- RoHS Status :
- ROHS3 Compliant
- Current Rating (Amps) :
- 5A AC/DC
- Illumination Type :
- Illuminated, Non-Illuminated
- Contact Plating :
- Gold, Silver
- Throw Configuration :
- SP, SPDT
- Mounting Type :
- Panel Mount
- Factory Lead Time :
- 14 Weeks
- Operating Temperature :
- -30°C~85°C
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Series :
- 7000
- Datasheets
- 7103P3DZQE
