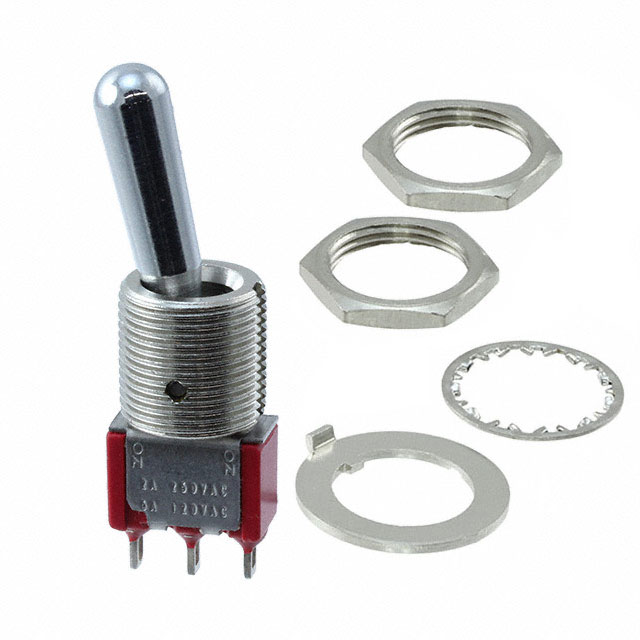

7101TPZQE

Manufacturer :

C&K

Product Category :

Mount :

Panel

Voltage - Rated DC :

28V

Actuator Material :

Brass, Chrome Plated

Switch Function :

On-On

Published :

2012

Illumination Type :

Illuminated, Non-Illuminated

Current Rating (Amps) :

5A AC/DC

Current Rating :

5A

Operating Temperature :

-30°C~85°C

Factory Lead Time :

14 Weeks

Packaging :

Bulk

Contact Plating :

Gold, Silver

RoHS Status :

ROHS3 Compliant

Circuit :

SPDT

Orientation :

Straight

Termination :

Solder

Length :

12.7mm

Depth :

6.86mm

Panel Cutout Dimensions :

Circular - 11.91mm Dia

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Current Rating :

5A

Electrical Life :

100,000 Cycles

Max Voltage Rating (DC) :

28V

Termination Style :

Solder Lug

Illumination :

Non-Illuminated

Voltage - Rated AC :

120V

Max Voltage Rating (AC) :

250V

Contact Material :

Silver

Series :

7000

Radiation Hardening :

No

Bushing Thread :

15/32-32

Feature :

Epoxy Sealed Terminals

Housing Material :

Stainless Steel

Mounting Type :

Panel Mount

Actuator Type :

Anti-Rotation

Throw Configuration :

SP, SPDT

Actuator Length :

17.45mm
