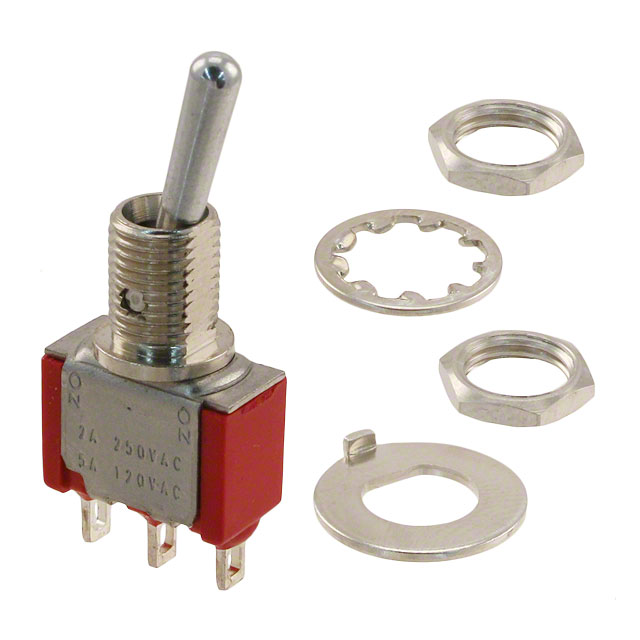

7101SPHZQE

Manufacturer :

C&K

Product Category :

RoHS Status :

ROHS3 Compliant

Mounting Type :

Panel Mount

Factory Lead Time :

14 Weeks

Max Current Rating :

5A

Panel Cutout Dimensions :

Circular - 6.35mm Dia

Contact Material :

Silver

Voltage - Rated AC :

120V

Actuator Type :

Anti-Rotation

Max Voltage Rating (AC) :

250V

Termination Style :

Solder Lug

Switch Function :

On-On

Bushing Thread :

1/4-40

Illumination Type :

Illuminated, Non-Illuminated

Published :

2012

Current Rating :

5A

Termination :

Solder

Voltage - Rated DC :

28V

Mount :

Panel

Throw Configuration :

SP, SPDT

Actuator Material :

Brass, Chrome Plated

Series :

7000

Electrical Life :

100,000 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Max Voltage Rating (DC) :

28V

Actuator Length :

10.67mm

Radiation Hardening :

No

Length :

12.7mm

Circuit :

SPDT

Contact Plating :

Gold, Silver

Illumination :

Non-Illuminated

Depth :

7.98mm

Operating Temperature :

-30°C~85°C

Current Rating (Amps) :

5A AC/DC

Orientation :

Straight

Housing Material :

Stainless Steel

Packaging :

Tray

Feature :

Epoxy Sealed Terminals
