7101SDCGE
Or copy the link below:
- Mfr.Part #
- 7101SDCGE
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description

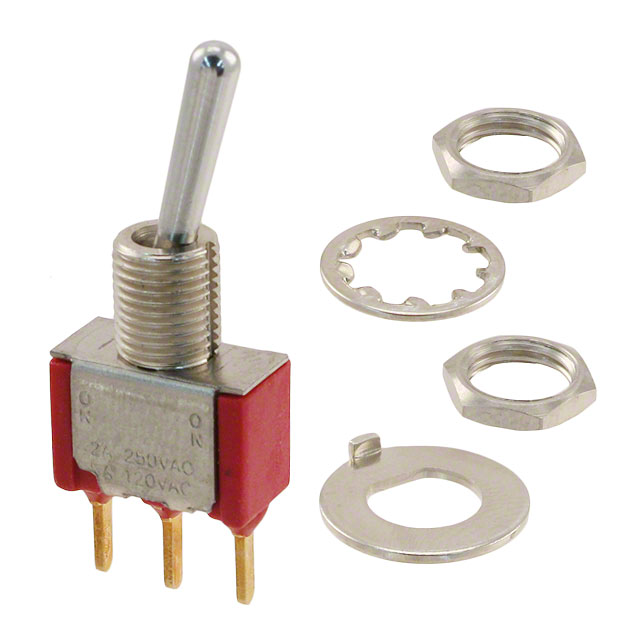

- SWITCH TOGGLE SPDT 5A 120V
- Stock
- 32
- In Stock ：
- 32
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Illumination Type :
- Illuminated, Non-Illuminated
- Current Rating (Amps) :
- 5A AC/DC
- Radiation Hardening :
- No
- Depth :
- 6.86mm
- Max Voltage Rating (DC) :
- 28V
- Actuator Material :
- Brass, Chrome Plated
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated DC :
- 28V
- Throw Configuration :
- SP, SPDT
- Max Current Rating :
- 5A
- Mount :
- Panel
- Actuator Type :
- Standard Round
- Orientation :
- Straight
- Published :
- 2012
- Current Rating :
- 5A
- Mounting Type :
- Panel Mount
- Contact Plating :
- Gold, Silver
- Voltage - Rated AC :
- 120V
- Length :
- 12.7mm
- Circuit :
- SPDT
- Factory Lead Time :
- 14 Weeks
- Termination Style :
- PC Pin
- Bushing Thread :
- 1/4-40
- Actuator Length :
- 12.45mm
- Switch Function :
- On-On
- Housing Material :
- Stainless Steel
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Illumination :
- Non-Illuminated
- Packaging :
- Tray
- Feature :
- Epoxy Sealed Terminals
- Panel Cutout Dimensions :
- Circular - 6.35mm Dia
- Electrical Life :
- 100,000 Cycles
- Max Voltage Rating (AC) :
- 250V
- Series :
- 7000
- Contact Material :
- Silver
- Termination :
- PC Pins
- Operating Temperature :
- -30°C~85°C
- Datasheets
- 7101SDCGE
