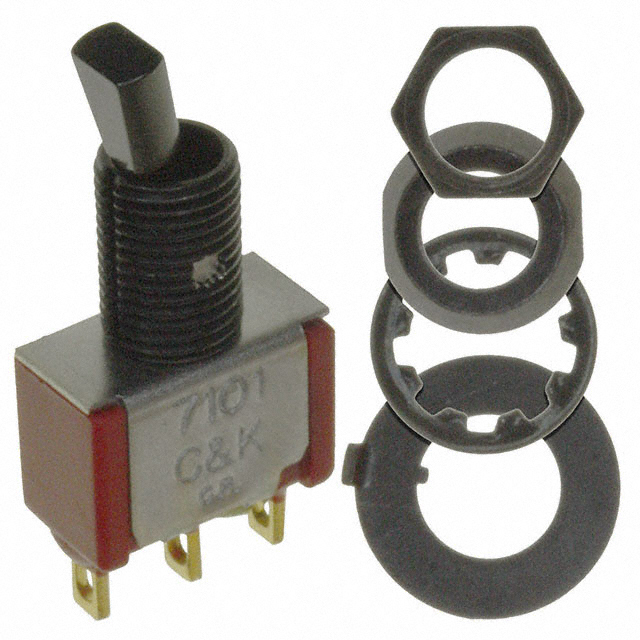

7101P4YZBE22
Or copy the link below:
- Mfr.Part #
- 7101P4YZBE22
- Manufacturer
- C&K
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE SPDT 0.4VA 20V
- Stock
- 174
- In Stock ：
- 174
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- C&K
- Product Category :
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -30°C~85°C
- Voltage - Rated DC :
- 20V
- Switch Function :
- On-On
- Contact Material :
- Gold
- Illumination :
- Non-Illuminated
- Packaging :
- Tray
- Length :
- 12.7mm
- Termination :
- Solder
- Max Voltage Rating (DC) :
- 20V
- Power Rating :
- 400mW
- Feature :
- Black Actuator
- Bushing Thread :
- 1/4-40
- Series :
- 7000
- RoHS Status :
- ROHS3 Compliant
- Actuator Material :
- Brass
- Current Rating (Amps) :
- 0.4VA AC/DC
- Actuator Type :
- Flat Anti-Rotation
- Circuit :
- SPDT
- Panel Cutout Dimensions :
- Circular - 6.35mm Dia
- Housing Material :
- Stainless Steel
- Voltage - Rated AC :
- 20V
- Throw Configuration :
- SP, SPDT
- Mount :
- Panel
- Termination Style :
- Solder Lug
- Depth :
- 6.86mm
- Published :
- 2012
- Illumination Type :
- Illuminated, Non-Illuminated
- Orientation :
- Straight
- Max Voltage Rating (AC) :
- 20V
- Electrical Life :
- 100,000 Cycles
- Factory Lead Time :
- 14 Weeks
- Actuator Length :
- 6.35mm
- Mounting Type :
- Panel Mount
- Datasheets
- 7101P4YZBE22
7101P4YZBE22 datasheet pdf and Toggle Switches product details from C&K stock available at
