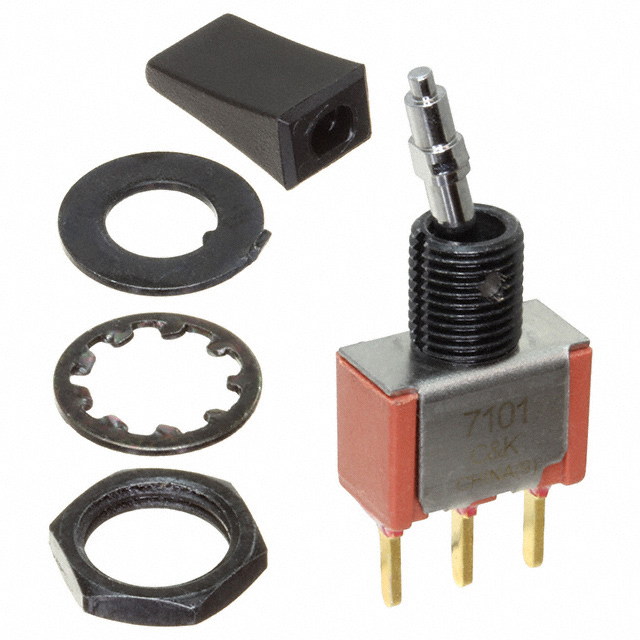

7101L41DCBE22

Manufacturer :

C&K

Product Category :

Voltage - Rated AC :

20V

Housing Material :

Stainless Steel

Actuator Length :

13.49mm

Panel Cutout Dimensions :

Circular - 6.35mm Dia

Mount :

Panel

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Switch Function :

On-On

Actuator Type :

Flat Anti-Rotation

Circuit :

SPDT

Length :

12.7mm

Mounting Type :

Panel Mount

Radiation Hardening :

No

Series :

7000

Operating Temperature :

-30°C~85°C

Bushing Thread :

1/4-40

Power Rating :

400mW

Packaging :

Bulk

Published :

2012

Feature :

Black Actuator

Orientation :

Straight

Max Voltage Rating (DC) :

20V

Max Voltage Rating (AC) :

20V

Current Rating (Amps) :

0.4VA AC/DC

Voltage - Rated DC :

20V

RoHS Status :

Non-RoHS Compliant

Illumination Type :

Illuminated, Non-Illuminated

Termination :

PC Pins

Termination Style :

PC Pin

Factory Lead Time :

14 Weeks

Actuator Material :

Thermoplastic

Depth :

6.86mm

Throw Configuration :

SP, SPDT

Illumination :

Non-Illuminated

Contact Material :

Gold

Lead Free :

Lead Free

Electrical Life :

100,000 Cycles
