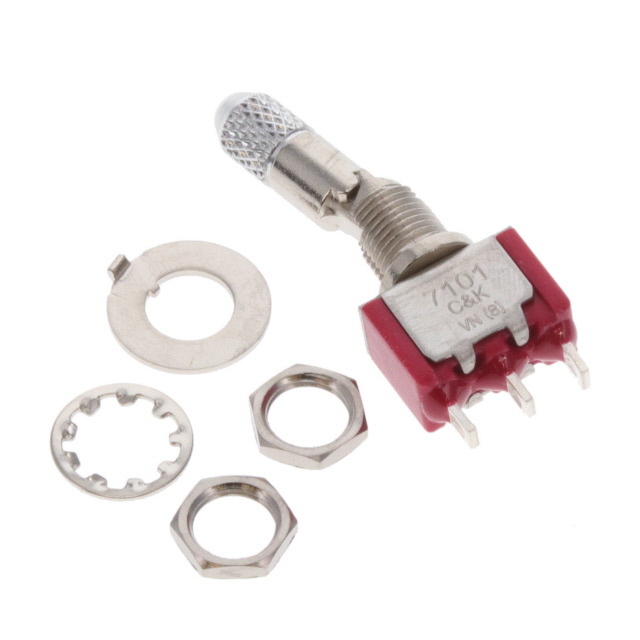

7101K2ZQEG

Manufacturer :

C&K

Product Category :

Seal :

Epoxy

Maximum Operating Temperature :

+ 85 C

Electrical Life (Cycles) :

100000

Seal Description :

Epoxy

Package :

Bag

Actuator Material :

Brass

Product Depth (mm) :

6.86

Compliance :

-

Mounting Style :

Panel Mount, PCB Mount

Voltage Rating - DC :

28 V

Switch Configuration :

ON None ON

Minimum Operating Temperature (°C) :

-30

RoHS Status :

Yes with exemptions

Product Status :

Active

Contact Plating :

Silver

Subcategory :

Switches

Contact Configuration :

SPDT

Pole Throw Configuration :

SPDT

Electrical Life :

100,000 Cycles

Illumination Color :

-

Termination Style :

Solder Lug

RoHS :

Details

Contact Form :

SPDT

Number of Positions :

2

Size Type :

Miniature

Housing Material :

Stainless Steel

Illumination Voltage (Nominal) :

-

Seal Location :

Terminals

Thread Size :

1/4-40

Actuator :

Locking Lever

Maximum Contact Resistance (mOhm) :

Number of Rows :

1

Illumination Type, Color :

-

Ingress Protection :

-

Actuator Style :

Locking Lever

Illumination :

Non Illuminated

Manufacturer :

CandK Switches

Lamp Type :

-

Actuator Length (mm) :

17.88

Bushing Type :

Threaded

ECCN (US) :

EAR99

Panel Cutout Dimensions :

Circular - 6.35mm Dia

Bushing Length (mm) :

8.51

Current Rating :

5 A

Features :

-

Body Length (mm) :

12.7

Product Category :

Toggle Switches

Product Length (mm) :

12.7

Voltage Rating - AC :

120 V

Circuit :

SPDT

Brand :

CandK

Packaging :

Bulk

Mounting :

Panel Mount with Threads

Minimum Insulation Resistance (MOhm) :

1000

Operating Temperature :

-30°C ~ 85°C

Current Rating (Amps) :

5A (AC/DC)

Mounting Type :

Bushing

Minimum Operating Temperature :

- 30 C

Base Product Number :

7101

Maximum Current Rating (A) :

5@120VAC 28VDC

Terminal Length (mm) :

3.94

Product Type :

Toggle Switches

IP Rating :

-

Terminal Pitch (mm) :

4.7

Actuator Length :

17.88mm

Bushing Thread :

1/4-40

Number of Terminals :

3

Switch Function :

ON - ON

Dielectric Strength :

1000Vrms

Maximum Operating Temperature (°C) :

85

Actuator Type :

Locking Lever

Body Height (mm) :

8.89

Series :

7000

Body Depth (mm) :

6.86

Body Orientation :

Straight

Product Height (mm) :

39.22
