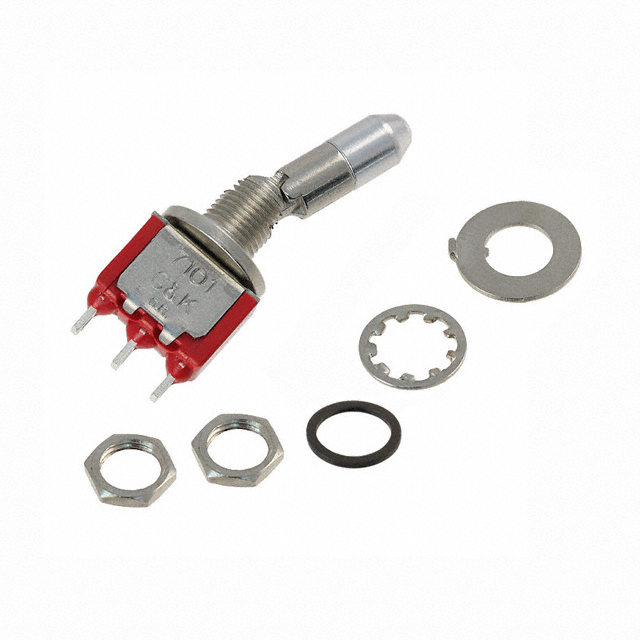

7101K2CWZQE

Manufacturer :

C&K

Product Category :

Max Current Rating :

5A

Mount :

Panel

Max Voltage Rating (AC) :

250V

Feature :

Epoxy Sealed Terminals

Termination :

Solder

Actuator Length :

17.88mm

Orientation :

Straight

Current Rating (Amps) :

5A AC/DC

Voltage - Rated AC :

120V

Housing Material :

Stainless Steel

Series :

7000

Depth :

11.81mm

Length :

12.7mm

Switch Function :

On-On

Voltage - Rated DC :

28V

Actuator Material :

Aluminum

Factory Lead Time :

14 Weeks

Max Voltage Rating (DC) :

28V

Contact Current Rating :

5A

Ingress Protection :

IP67 - Dust Tight, Waterproof

Ratings :

Dust Tight, IP67, Waterproof

Circuit :

SPDT

Published :

2012

Operating Temperature :

-30°C~85°C

Mounting Type :

Panel Mount

Packaging :

Tray

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Panel Cutout Dimensions :

Circular - 6.35mm Dia

Illumination Type :

Illuminated, Non-Illuminated

Electrical Life :

100,000 Cycles

Radiation Hardening :

No

Actuator Type :

Locking Lever

Bushing Thread :

1/4-40

Termination Style :

Solder Lug

Contact Material :

Silver

RoHS Status :

ROHS3 Compliant

Current Rating :

5A

Illumination :

Non-Illuminated
