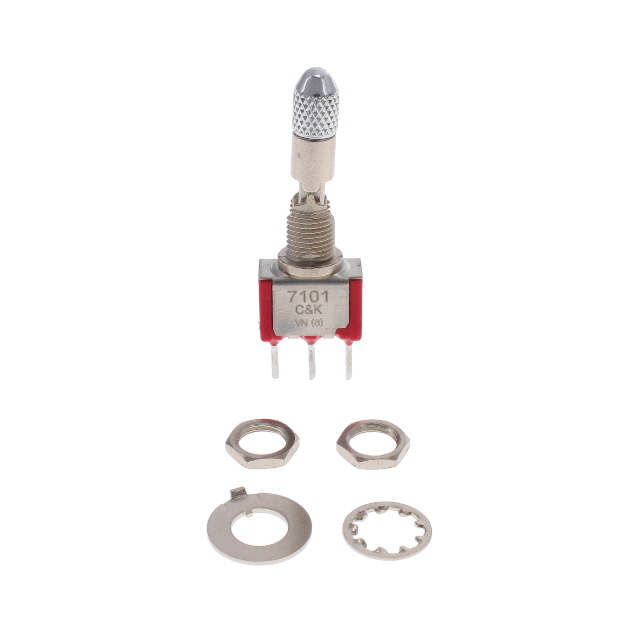

7101K2CREG

Manufacturer :

C&K

Product Category :

Maximum Operating Temperature :

+ 85 C

Pole Throw Configuration :

SPDT

Thread Size :

1/4-40

Housing Material :

Stainless Steel

Minimum Operating Temperature (°C) :

-30

ECCN (US) :

EAR99

IP Rating :

-

Contact Form :

SPDT

Mounting Style :

Panel Mount, PCB Mount

Actuator Length (mm) :

17.88

Product Height (mm) :

36.83

Mounting Type :

Bushing

Compliance :

-

Brand :

CandK

Electrical Life (Cycles) :

100000

Lamp Type :

-

Series :

7000

Seal :

Epoxy

Contact Plating :

Gold

Contact Configuration :

SPDT

RoHS :

Details

Actuator Style :

Locking Lever

Actuator :

Locking Lever

Switch Configuration :

ON None ON

Number of Positions :

2

Terminal Pitch (mm) :

4.7

Product Depth (mm) :

6.86

Actuator Material :

Brass

Current Rating :

2 A, 5 A

Maximum Current Rating (A) :

5@120VAC 28VDC

Minimum Operating Temperature :

- 30 C

Body Depth (mm) :

6.86

Packaging :

Bulk

Product Length (mm) :

12.7

Bushing Length (mm) :

8.51

Maximum Contact Resistance (mOhm) :

Product Category :

Toggle Switches

Mounting :

PC Mount with Threads

Number of Rows :

1

Illumination :

Non Illuminated

Bushing Type :

Threaded

Product Type :

Toggle Switches

Seal Location :

Terminals

Subcategory :

Switches

Body Orientation :

Straight

Size Type :

Miniature

Seal Description :

Epoxy

Number of Terminals :

3

Body Height (mm) :

8.89

Maximum Power Rating (VA) :

0.4@20VAC 20VDC

Termination Style :

PC Pins

RoHS Status :

Yes with exemptions

Maximum Operating Temperature (°C) :

85

Illumination Color :

-

Terminal Length (mm) :

6.35

Minimum Insulation Resistance (MOhm) :

1000

Body Length (mm) :

12.7

Dielectric Strength :

1000Vrms

Switch Function :

ON - ON

Manufacturer :

CandK Switches
