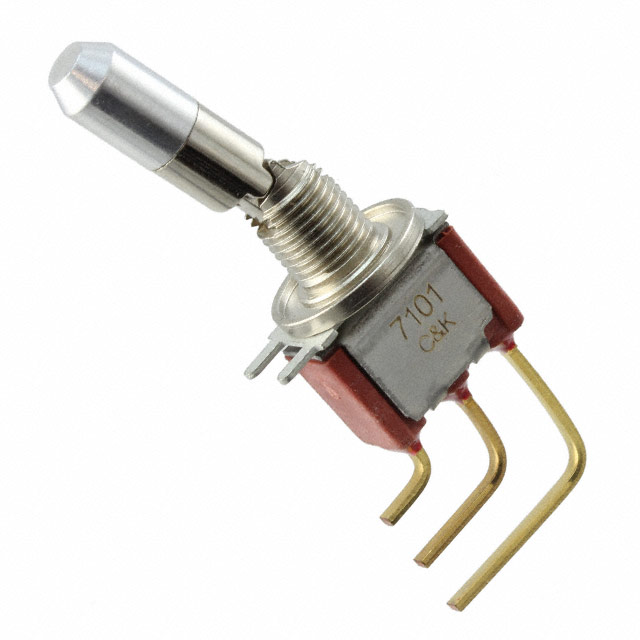

7101K12CWAV2BE

Manufacturer :

C&K

Product Category :

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Feature :

Black Anodized

Circuit :

SPDT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Throw Configuration :

SP, SPDT

Housing Material :

Stainless Steel

Power Rating :

400mW

Ingress Protection :

IP67 - Dust Tight, Waterproof

Operating Temperature :

-30°C~85°C

Radiation Hardening :

No

Mounting Type :

Panel Mount, Right Angle, Vertical

Actuator Type :

Locking Lever

Max Operating Temperature :

85°C

Factory Lead Time :

14 Weeks

Bushing Thread :

1/4-40

Switch Function :

On-On

Illumination :

Non-Illuminated

Series :

7000

Electrical Life :

100,000 Cycles

Termination Style :

PC Pin

Length :

11.81mm

Contact Plating :

Gold

Current Rating (Amps) :

0.4VA AC/DC

Max Voltage Rating (AC) :

20V

Min Operating Temperature :

-30°C

Published :

2012

Mount :

Brackets, Panel, Vertical

Voltage - Rated DC :

20V

Voltage - Rated AC :

20V

Actuator Material :

Aluminum

Contact Material :

Gold

Panel Cutout Dimensions :

Circular - 6.35mm Dia

Max Voltage Rating (DC) :

20V

Ratings :

Dust Tight, IP67, Waterproof

Illumination Type :

Illuminated, Non-Illuminated

Termination :

PC Pins

Depth :

48.79mm

Actuator Length :

18.59mm
