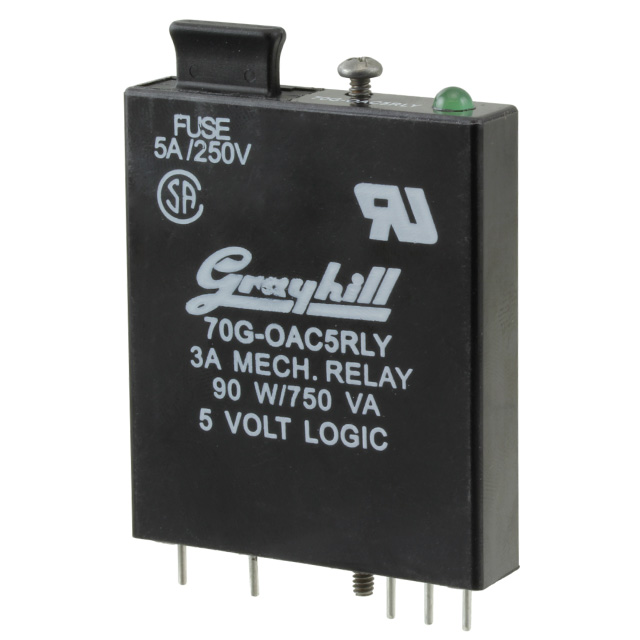

70G-OAC5RLY

Manufacturer :

Grayhill, Inc.

Product Category :

I/O Relay Modules

Published :

1999

Feature :

Hold Down Screw, Fused, Status LED(s)

Output Type :

Digital

Termination :

PC Pins

Series :

70

Style :

G5

Voltage - Output :

0V~250VAC 0V~110VDC

RoHS Status :

RoHS Compliant

Load Current :

3A

Mount :

PCB, Plug-In, Screw, Through Hole

Agency Approvals :

UL/CSA

Technology :

Solid State

Mounting Style :

Through Hole/Plug-In

Max Input Voltage (AC) :

250V

Factory Lead Time :

16 Weeks

Length :

48.3mm

Approval Agency :

CE, CSA, TUV, UL

Max Input Current :

26mA

Throw Configuration :

SPST

Min Operating Temperature :

-40°C

Package :

Bulk

Number of Pins :

4

Turn-Off Delay Time :

11 ms

Max Output Current :

3A

RoHS :

Details

Height :

55.9mm

Pin Count :

4

Product Type :

I/O Modules

Brand :

Grayhill

Voltage - Rated DC :

280V

Max Input Voltage :

6V

Type :

AC Output Module

Manufacturer :

Grayhill

Operating Temperature Min Deg. C :

-40C

Max Input Voltage (DC) :

110V

Load Voltage (Min) :

0VDC/0VAC

Mounting :

Screw Mount

Product Category :

I/O Modules

Number of Poles :

1

Current - Output :

3A

Turn On Time :

11ms

Max Operating Temperature :

70°C

Min Input Voltage :

4V

Turn On Delay Time :

11 ms

I/O Isolation Voltage :

1500Vrms

Current Rating :

3.5A

Input Voltage (Max) :

110VDC/250VAC

Package / Case :

Module

Width :

55.88mm

Input Type :

DC/AC

Product Status :

Active

Base Product Number :

70G-OAC

Operating Temperature Max Deg. C :

70C

Voltage - Input :

5VDC (4.8 ~ 6VDC)

Features :

Hold Down Screw, Fused, Status LED(s)

Subcategory :

I/O Modules

Load Voltage (Max) :

110VDC/250VAC

Turn Off Time :

11ms

Module Type :

Output Module

Depth :

11.7mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Resistance :

100Ohm

Lead Free :

Lead Free

Color :

Black

Current - Input :

26mA
