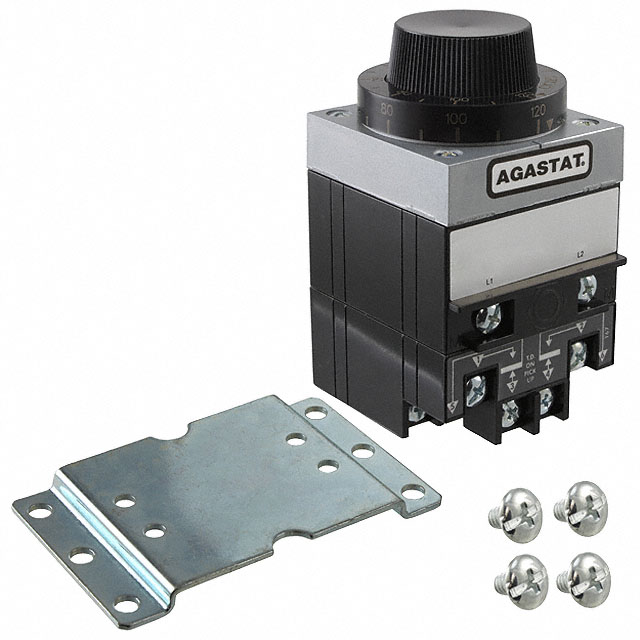

7012PJ
Or copy the link below:
- Mfr.Part #
- 7012PJ
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- 120
- Datasheet
- Download
- Description
- RELAY TIME DELAY 2SEC 10A 240V
- Stock
- 49,820
- In Stock ：
- 49,820
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Time Delay Relays
- Reference Standard :
- CE; CSA; FM; UL
- Width :
- 82.55mm
- Relay Type :
- Mechanical Relay
- Timing Initiate Method :
- Input Voltage
- Contact (DC) Max Rating R Load :
- 15A@30VDC
- ECCN Code :
- EAR99
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Mount :
- Panel
- Circuit :
- DPDT (2 Form C)
- Coil Voltage (DC) :
- 125V
- Contact Current(DC)-Max :
- 15A
- Body Breadth :
- 65.3 mm
- Termination Style :
- Screw Terminal
- Published :
- 2008
- Lead Free :
- Not Applicable
- Max Operating Temperature :
- 75°C
- Adjustable Time Delay-Max :
- 2 s
- RoHS Status :
- Non-RoHS Compliant
- Nominal Input Voltage (DC) :
- 125V
- Function :
- On-Delay
- Relay Action :
- Momentary
- Contact/Output Supply Type :
- AC/DC
- Termination :
- Screw
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Factory Lead Time :
- 10 Weeks
- Max Current Rating :
- 10A
- Throw Configuration :
- DPDT
- Series :
- 7000, AGASTAT
- REACH SVHC :
- Unknown
- Voltage - Rated DC :
- 125V
- Approval Agency :
- CE, CSA, UL
- Min Operating Temperature :
- -30°C
- Contact (AC) Max Rating R Load :
- 10A@240VAC
- Timing Adjustment Method :
- Hand Dial
- ELV :
- Non-Compliant
- Contact Rating @ Voltage :
- 10A @ 240VAC
- Mounting Type :
- Panel Mount
- Contact Current Rating :
- 10A
- Number of Pins :
- 8
- Voltage - Supply :
- 125VDC
- Max Voltage Rating (AC) :
- 240V
- Package / Case :
- 120
- Electrical Life :
- 100000 Cycle(s)
- Delay Time :
- 0.05 Sec ~ 2 Sec
- Body Height :
- 71.9mm
- Datasheets
- 7012PJ
7012PJ Documents
7012PJ datasheet pdf and Time Delay Relays product details from TE Connectivity Aerospace, Defense and Marine stock available at
