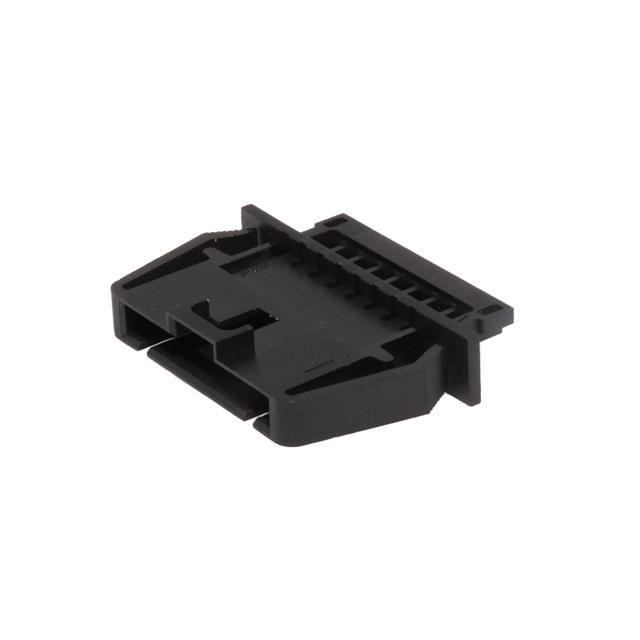

70107-5041

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Package :

Box

Product :

Wire Housings

Body Orientation :

Straight

HTS Code :

8536.69.40.40

Voltage Rating Max :

600VDC/600VAC

Housing Gender :

Male

Product Length :

29.21 mm

Country of Origin :

US

Number of Contacts :

7 POS

Application :

Power

Operating Temperature :

-40 to 105 °C

Product Length (mm) :

29.21(mm)

Mounting :

Cable Mount

Number of Contact Rows :

1

Operating Temp Range :

-40C to 105C

Housing Material :

Polyester

Mounting Style :

Panel Mount

Voltage Rating :

250 V

Color :

Black

Termination Style :

Crimp

Tradename :

SL

Minimum Operating Temperature :

- 40 C

Orientation :

Straight

Gender :

PLUG

Contact Gender :

Pin (Male)

Maximum Operating Temperature :

+ 105 C

Product Status :

Active

Reach Compliance Code :

Compliant

Pitch :

2.5400 mm

Packaging :

Bag

Lifecycle Status :

Production (Last Updated: 2 years ago)

Approvals :

CSA, UL

Product Height (mm) :

23.07(mm)

Wire Size :

22 AWG

Schedule B :

8536695050/8536695050/8536695050/8536695050/8536695050

Housing Color :

Black

Series :

70107

Type :

Housing

RoHS :

Compliant

ECCN Code :

EAR99

Brand :

Molex

Product Category :

Headers and Wire Housings

Current Rating (Max) :

3/Contact(A)

Wire Gauge :

22-36(AWG)

Number of Positions :

7

Factory Lead Time :

15 Weeks

Contact Type :

Pin (Male)

Panel Mount :

No

Pitch (mm) :

2.54(mm)

REACH SVHC :

Unknown

Manufacturer :

Molex

Subcategory :

Headers and Wire Housings

Base/Housing Material :

Polyester

Termination :

Crimp

Connector Type :

BOARD CONNECTOR

For Use With :

Molex SL 70021 Series Pin Contacts

Number of Rows :

1

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Material :

Polyester

Insulation Resistance :

10 GOhms

Product Type :

Headers and Wire Housings
