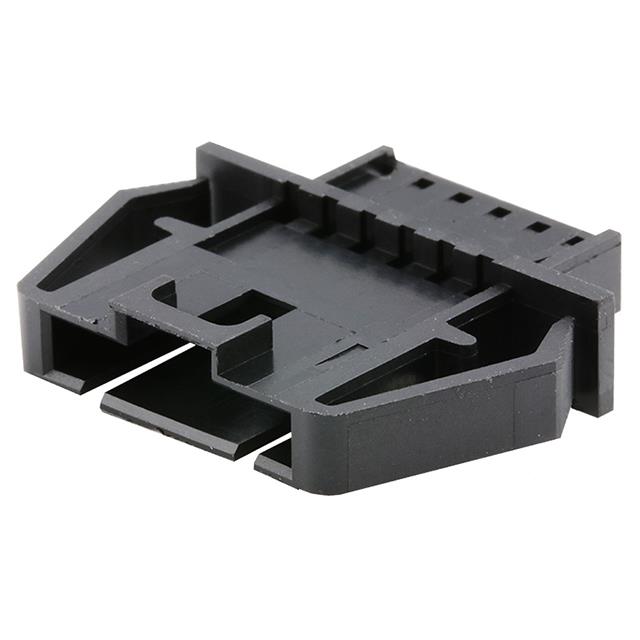

70107-0053
- Mfr.Part #
- 70107-0053
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- SL WTW CONN SR W/MTGE OPT B 19CK
- Stock
- 35,377
- In Stock :
- 35,377
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Rectangular Connector Housings
- Tradename :
- SL
- UL Flammability Code :
- 94V-0
- Mounting Style :
- Panel Mount
- Housing Color :
- Black
- IEC Conformance :
- No
- Contact Gender :
- Pin (Male)
- Product Type :
- Headers and Wire Housings
- Pitch :
- 2.54 mm
- Product Status :
- Active
- Type :
- Plug Housing
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Insulation Resistance :
- 10000000000 Ω
- DIN Conformance :
- No
- Minimum Operating Temperature :
- - 40 C
- Mounting Type :
- Panel
- Maximum Operating Temperature :
- + 105 C
- Contact Style :
- SQ PIN-SKT
- Mixed Contacts :
- No
- Filter Feature :
- No
- Mounting Option 2 :
- LOCKING
- Series :
- 70107
- Gender :
- Receptacle
- Termination Type :
- Crimp
- Product :
- Wire Housings
- Reach Compliance Code :
- Unknown
- Panel Mount :
- No
- Housing Material :
- Polyester
- Polarization Key :
- POLARIZED HOUSING
- Additional Feature :
- SL, COMPATIBLE CONTACTS: 16-02-0116; 16-02-0078; 16-02-0081; 16-02-0077; 16-02-0107, POLARIZED
- Total Number of Contacts :
- 19
- Reference Standard :
- UL, CSA
- Option :
- GENERAL PURPOSE
- Insulator Color :
- Black
- Rated Current (Signal) :
- 3 A
- Mounting Option 1 :
- GUIDE SLOT
- Contact Finish Termination :
- NOT SPECIFIED
- Body/Shell Style :
- Receptacle
- Flammability Rating :
- UL 94 V-0
- Mating Contact Pitch :
- 0.1 inch
- Number of Positions :
- 19 Position
- Body Depth :
- 0.955 inch
- Dielectric Withstanding Voltage :
- 1500VAC V
- Reliability :
- COMMERCIAL
- Contact Resistance :
- 30 mΩ
- Product Category :
- Headers and Wire Housings
- Housing Gender :
- Male
- Pbfree Code :
- yes
- Termination Style :
- Crimp
- Connector Type :
- BOARD CONNECTOR
- Subcategory :
- Headers and Wire Housings
- Packaging :
- Bulk
- Manufacturer :
- Molex
- Package :
- Box
- Color :
- Black
- Application :
- Signal
- Number of Rows :
- 1 Row
- Brand :
- Molex
- RoHS :
- Details
- Contact Pattern :
- RECTANGULAR
- MIL Conformance :
- No
- Contact Material :
- NOT SPECIFIED
- Datasheets
- 70107-0053
