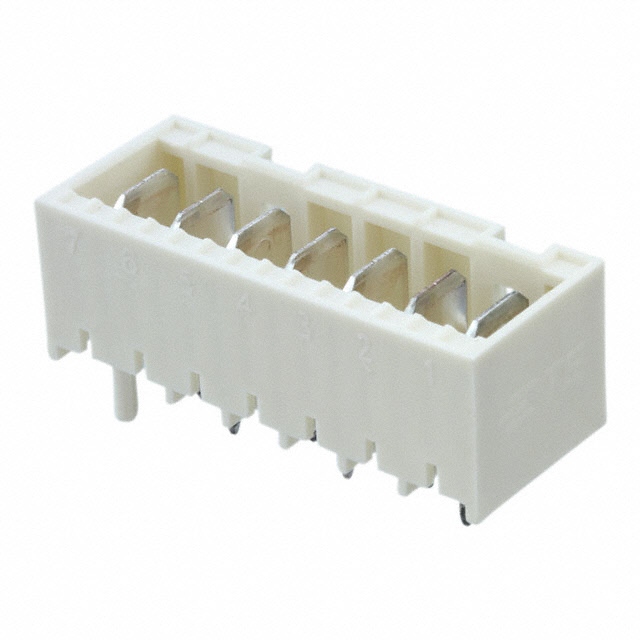

7-2232044-7
Or copy the link below:
- Mfr.Part #
- 7-2232044-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 5MM
- Stock
- 20,747
- In Stock ：
- 20,747
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Termination :
- Solder
- Contact Finish - Post :
- Silver
- Contact Length - Post :
- 0.138 3.50mm
- Feature :
- Board Guide, Glow Wire Compliant
- Factory Lead Time :
- 16 Weeks
- Applications :
- GENERAL PURPOSE
- Max Operating Temperature :
- 248°C
- Housing Color :
- Natural
- Packaging :
- Bulk
- PCB Mount Alignment :
- With
- Published :
- 2014
- Contact Style :
- Straight
- Material :
- Nylon
- Mount :
- Through Hole
- Fastening Type :
- Latch Holder
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Height :
- 0.504 12.80mm
- Voltage - Rated :
- 250VAC
- PCB Mounting Orientation :
- Vertical
- Insulation Color :
- Natural
- Orientation :
- Vertical
- Contact Material :
- COPPER ALLOY
- PCB Thickness :
- 1.5mm
- Mating Post Length :
- 8.5mm
- Flammability Rating :
- UL94 V-0
- Length :
- 37.338mm
- Contact Finish - Mating :
- Silver
- Operating Supply Voltage :
- 250V
- Contact Plating :
- Silver
- Length - Tail :
- 3.5mm
- Row Spacing :
- 5 mm
- RoHS Status :
- RoHS Compliant
- PCB Mount Retention :
- Without
- Height :
- 12.8mm
- Current Rating (Amps) :
- 20A
- Connector Type :
- Header
- Min Operating Temperature :
- -40°C
- Material Flammability Rating :
- UL94 V-0
- Sealable :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Type :
- Tab
- Pitch - Mating :
- 0.197 5.00mm
- Number of Positions Loaded :
- All
- Pitch :
- 5mm
- Contact Shape :
- RECTANGULAR
- Number of Contacts :
- 7
- Housing Material :
- Nylon
- Preloaded :
- yes
- Plating :
- Silver
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Board to Cable/Wire
- Number of Positions :
- 7
- Mating Retention :
- With
- Color :
- Natural
- Operating Temperature :
- -40°C~120°C
- Mounting Type :
- Through Hole
- Datasheets
- 7-2232044-7
1-Row Header Solder Copper Alloy Bulk Through Hole Silver Polyamide (PA), Nylon 7-Position Board to Cable/Wire 0.504 12.80mm Height
7-2232044-7 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.When the temperature is below 248°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device could be used for the following application: General Purpose.There are a number of advantages to its Board Guide, Glow Wire Compliant feature.Part Through Hole is mounted to the part.250V is the operating supply voltage for this memory.As a result, the device runs at -40°C~120°C Operating Temperature.
7-2232044-7 Features
7-2232044-7 Applications
There are a lot of TE Connectivity AMP Connectors
7-2232044-7 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
