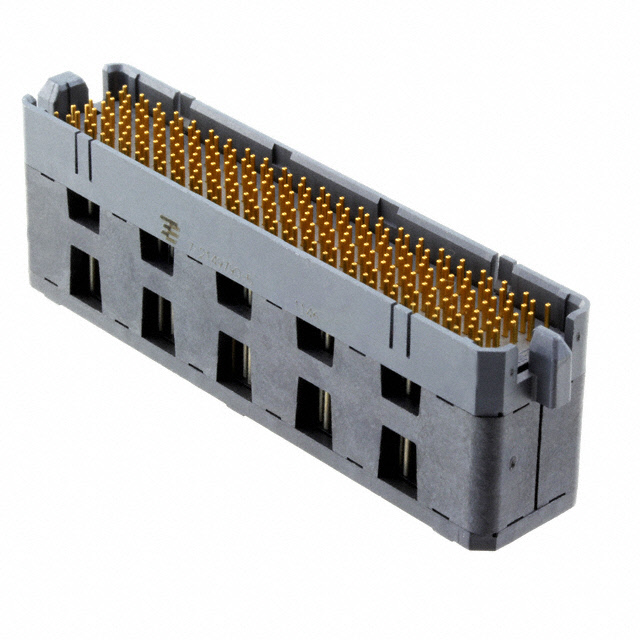

7-2149790-5
Or copy the link below:
- Mfr.Part #
- 7-2149790-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN DIFF ARRAY PLG 291P PCB TIN
- Stock
- 17,807
- In Stock ：
- 17,807
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 250V
- Length - Tail :
- 1.4732mm
- Stack Height :
- 25mm
- Stackable :
- No
- Factory Lead Time :
- 21 Weeks
- Housing Color :
- Black
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Insulation Resistance :
- 1GOhm
- Stack Height (Mating) :
- 25mm
- Contact Plating :
- Tin
- Min Operating Temperature :
- -67°C
- PCB Mounting Orientation :
- Vertical
- Number of Positions :
- 291
- Contact Finish :
- Tin
- Number of Pairs :
- 88
- Orientation :
- Vertical
- Flammability Rating :
- UL94 V-0
- PCB Mount Retention :
- With
- Mating Alignment :
- With
- Termination :
- Press-Fit
- Contact Current Rating :
- 1.5A
- Packaging :
- Tray
- Plating Thickness :
- 2.54μm
- Number of Pins :
- 291
- Max Operating Temperature :
- 185°C
- Housing Material :
- Thermoplastic
- Height Above Board :
- 0.976 24.80mm
- Mounting Type :
- Through Hole, Press-Fit
- Preloaded :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2012
- PCB Thickness :
- 60μm
- Contact Finish Thickness - Mating :
- 76 nm
- Sealable :
- No
- Connector Type :
- Differential Pair Array, Male
- Number of Contacts :
- 291
- ELV :
- Compliant
- Height :
- 24.7904mm
- Series :
- Strada
- PCB Mount Alignment :
- With
- Impedance :
- 100Ohm
- Datasheets
- 7-2149790-5
Differential Pair Array, Male Tray Through Hole, Press-Fit 291 Positions STRADA Tin Press-Fit
7-2149790-5 Overview
A Differential Pair Array, Male package is included with it.Packaging is performed using a Tray case.Its mounting type is Through Hole, Press-Fit.It is part of the STRADA Series of products.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -67°C at all times.The device is capable of operating with a 250V supply, so it is suitable for this application.291 pins are provided on the device.
7-2149790-5 Features
STRADA series
Package / Case: Tray
Mounting Type:Through Hole, Press-Fit
Max Operating temperature at -67°C
291 pins
7-2149790-5 Applications
There are a lot of TE Connectivity AMP Connectors
7-2149790-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
