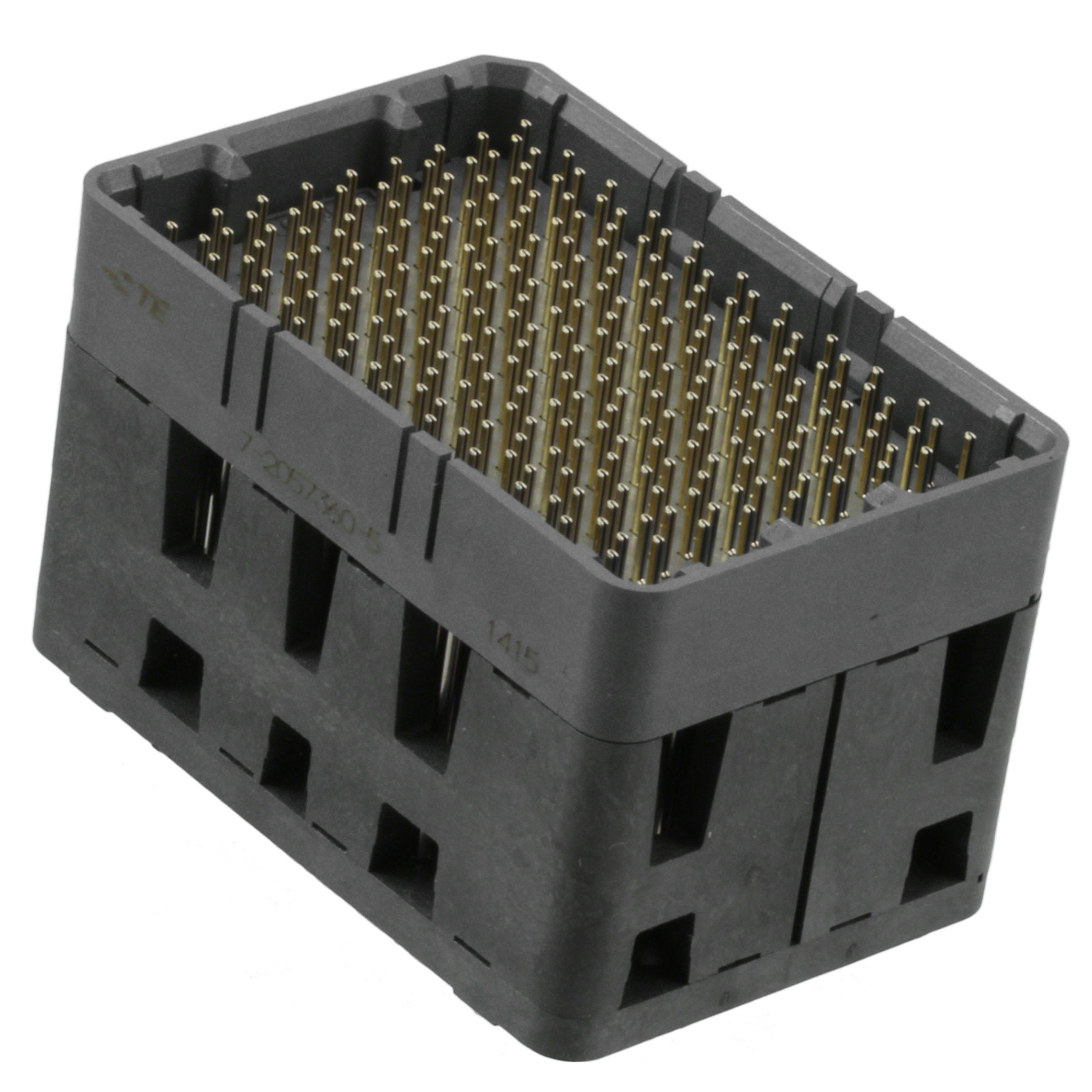

7-2057360-5
Or copy the link below:
- Mfr.Part #
- 7-2057360-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN DIFF ARRAY PLUG 259POS PCB
- Stock
- 15,925
- In Stock ：
- 15,925
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Published :
- 2012
- Series :
- Strada
- Contact Finish :
- Gold
- Length :
- 40.25mm
- Height Above Board :
- 0.976 24.80mm
- Plating :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Orientation :
- Straight
- Factory Lead Time :
- 9 Weeks
- Sealable :
- No
- Number of Pairs :
- 80
- Housing Color :
- Black
- Number of Contacts :
- 259
- Contact Finish Thickness :
- 30.0μin 0.76μm
- ELV :
- Compliant
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stack Height :
- 25mm
- Connector Type :
- Differential Pair Array, Male
- PCB Thickness :
- 60μm
- Mounting Type :
- Through Hole, Press-Fit
- Contact Plating :
- Gold
- Housing Material :
- Thermoplastic
- Termination :
- Solder
- Insulation Resistance :
- 1GOhm
- Stack Height (Mating) :
- 25mm
- Number of Positions :
- 259
- Contact Finish Thickness - Mating :
- 76 nm
- Packaging :
- Tray
- Preloaded :
- yes
- PCB Mount Retention :
- Without
- Mount :
- Through Hole
- PCB Mount Alignment :
- Without
- Mating Alignment :
- With
- Datasheets
- 7-2057360-5
Differential Pair Array, Male Tray Through Hole, Press-Fit 259 Positions STRADA Gold Solder
7-2057360-5 Overview
The product is packaged in Differential Pair Array, Male.It has been determined that a Tray case is necessary to package the product.This device is mounted in the Through Hole, Press-Fit position.There is a product in the STRADA Series.For mounting this component, a Through Hole socket is required.
7-2057360-5 Features
STRADA series
Package / Case: Tray
Mounting Type:Through Hole, Press-Fit
7-2057360-5 Applications
There are a lot of TE Connectivity AMP Connectors
7-2057360-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
