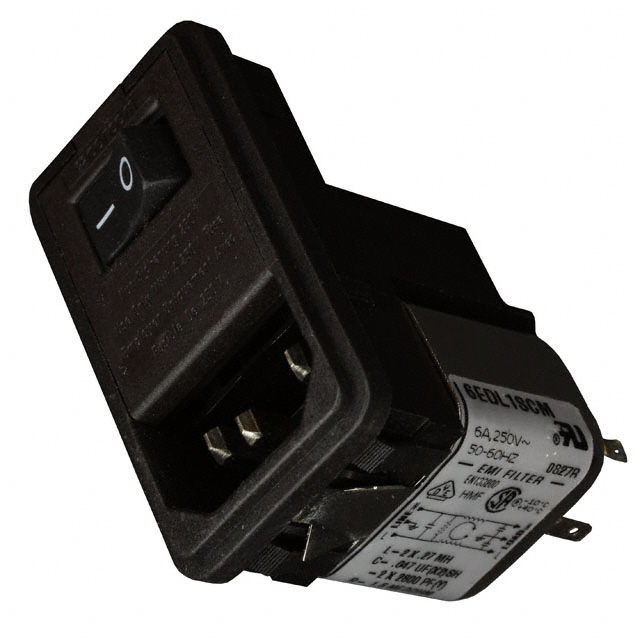

6EDL1SCM
Or copy the link below:
- Mfr.Part #
- 6EDL1SCM
- Manufacturer
- TE Connectivity Corcom Filters
- Package / Case
- Module
- Datasheet
- Download
- Description
- PWR ENT MOD RCPT IEC320-C14 PNL
- Stock
- 12,661
- In Stock ：
- 12,661
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Corcom Filters
- Product Category :
- Power Entry Modules (PEM)
- Panel Cutout Dimensions :
- Variable Size
- Series :
- L, Corcom
- Filter Type :
- Filtered (EMI, RFI) - Commercial
- REACH SVHC :
- Unknown
- Accomodates a Fuse :
- Yes (Fuse Not Included)
- Capacitance :
- 47nF
- Current Rating :
- 6A
- Max Current Rating :
- 6A
- Voltage - Rated :
- 250V
- Factory Lead Time :
- 16 Weeks
- Max Voltage Rating (AC) :
- 250V
- ELV :
- Compliant
- Number of Ports :
- 1
- Switch Features :
- Switch On-Off
- Number of Poles :
- 3
- Published :
- 2003
- Connector Style :
- IEC 320-C14
- Orientation :
- Straight
- Max Operating Temperature :
- 40°C
- Panel Thickness :
- 0.031 ~ 0.126 0.79mm ~ 3.20mm
- Mounting Type :
- Panel Mount, Snap-In
- Current - UL :
- 4A
- Termination :
- Quick Connect - 0.110 (2.8mm)
- Fuse Holder, Drawer :
- Fuse Holder, Twin Fused
- RoHS Status :
- RoHS Compliant
- Package / Case :
- Module
- Connector Type :
- Receptacle, Male Blades - Module
- Number of Contacts :
- 3
- Packaging :
- Bulk
- Voltage - UL :
- 250VAC
- Voltage - IEC :
- 120/250VAC
- Min Operating Temperature :
- -10°C
- Number of Positions :
- 3
- Inductance :
- 270 µH
- Current :
- 6A
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Current - IEC :
- 4A
- Lead Free :
- Lead Free
- Resistance :
- 6GOhm
- Gender :
- Male
- Voltage - Rated DC :
- 250V
- Leakage Current :
- 250μA
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Fuse :
- yes
- Approval Agency :
- CSA, SEMKO, SEV, UL, VDE
- Mount :
- Snap in
- Voltage - Rated AC :
- 250V
- Datasheets
- 6EDL1SCM
