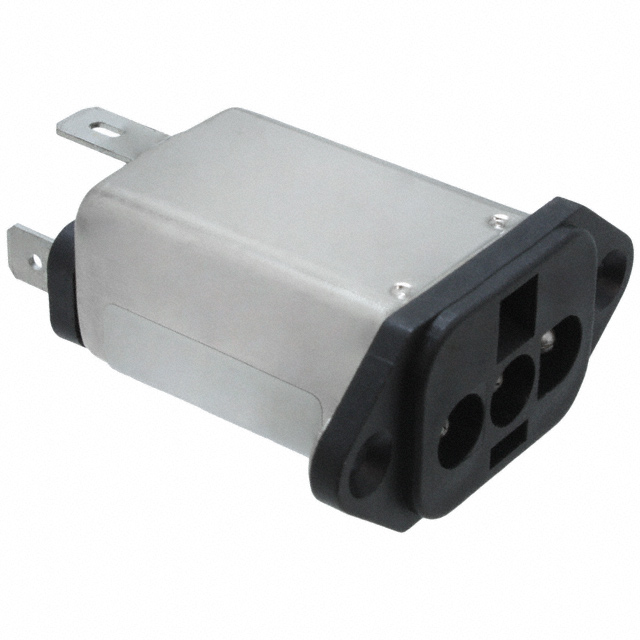

6DAF1

Manufacturer :

TE Connectivity Corcom Filters

Product Category :

Power Line Filter Modules

Min Operating Temperature :

-10°C

Length :

50.29mm

Mounting Type :

Panel Mount, Flange

RoHS Status :

RoHS Compliant

Connector Type :

Receptacle, Male Pins

Number of Contacts :

3

Number of Ports :

1

Factory Lead Time :

31 Weeks

Lead Free :

Lead Free

Current - UL :

6A

Frequency :

200MHz

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Depth :

20.57mm

Current :

6A

Gender :

Male

Voltage - UL :

125VDC

Width :

54.61mm

Number of Positions :

3

Wire/Cable Gauge :

18 AWG

Approval Agency :

CSA, UL, VDE

Max Voltage Rating (AC) :

125V

Mount :

Flanges, Panel, Screw, Through Hole

Package / Case :

125

Orientation :

Straight

Fuse :

No

Feature :

Front or Rear Side Mount

Series :

DA, Corcom

Filter Type :

Filtered (EMI, RFI) - Commercial

ELV :

Compliant

Accomodates a Fuse :

No

Max Current Rating :

6A

Packaging :

Bulk

Current Rating :

6A

Panel Cutout Dimensions :

Variable Size

Max Operating Temperature :

55°C

Termination :

Quick Connect - 0.250 (6.3mm)

Published :

2003

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Rated DC :

125V

Connector Style :

Custom Connection
