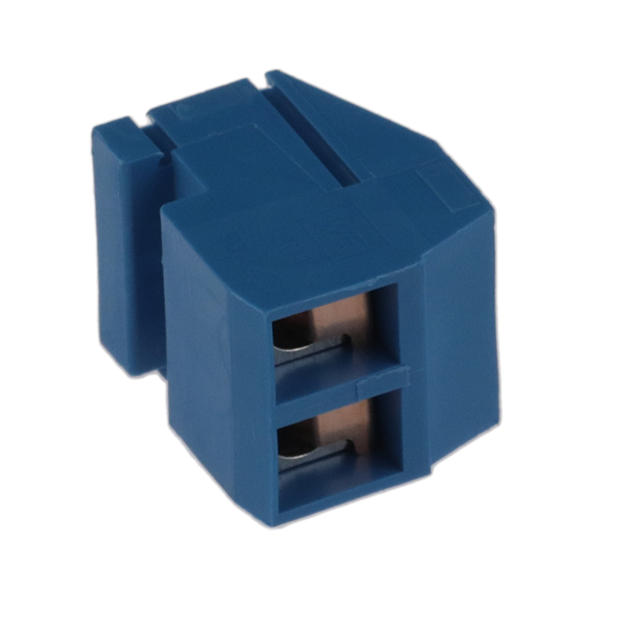

691301710002
Or copy the link below:
- Mfr.Part #
- 691301710002
- Manufacturer
- Würth Elektronik
- Package / Case
- Datasheet
- Download
- Description
- 5.00 MM TERMINAL BLOCK, HORIZONT
- Stock
- 571
- In Stock ：
- 571
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Würth Elektronik
- Product Category :
- Headers, Plugs and Sockets
- Current - UL :
- 15A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Positions Per Level :
- 2
- Termination :
- Screw
- Mounting Type :
- Free Hanging (In-Line)
- Factory Lead Time :
- 8 Weeks
- Gender :
- FEMALE
- Series :
- WR-TBL Series 3017
- Operating Temperature :
- -40°C~105°C
- Pitch :
- 0.197 5.00mm
- Wire Strip Length :
- 5-6mm
- Color :
- Blue
- Voltage - UL :
- 300V
- Material Flammability Rating :
- UL94 V-0
- Termination Style :
- Screw - Leaf Spring, Wire Guard
- Contact Plating :
- Tin
- Length :
- 13.6mm
- Number of Levels :
- 1
- Number of Positions :
- 2
- Plug Wire Entry :
- 90°
- Type :
- Plug for Unshrouded Header
- Housing Material :
- Polyamide (PA66), Nylon 6/6
- Contact Material :
- Brass
- Screw Size :
- M2.6
- Stripping Length :
- -6mm
- Wire Gauge or Range - AWG :
- 14-22 AWG
- Wire Gauge or Range - mm² :
- 0.33-2.08mm2
- Connector Type :
- PCB, Terminal Block
- Insulation Height :
- 0.433 11.00mm
- RoHS Status :
- ROHS3 Compliant
- Torque - Screw :
- 0.4 Nm (3.5 Lb-In)
- REACH SVHC :
- No SVHC
- Wire/Cable Gauge :
- 22 AWG
- Width :
- 10.7mm
- Number of Contacts :
- 2
- Packaging :
- Bulk
- Datasheets
- 691301710002
691301710002 Documents
Bulk 0.197 5.00mm Blue 1 Levels Free Hanging (In-Line) Plug for Unshrouded Header WR-TBL Series 3017 Polyamide (PA66), Nylon 6/6 Brass
691301710002 Overview
The product comes in a package of PCB, Terminal Block.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the WR-TBL Series 3017 Series.It operates at an operating temperature of -40°C~105°C.Compared to other Plug for Unshrouded Header products, this part has a lot of benefits to offer.
691301710002 Features
WR-TBL Series 3017 series
691301710002 Applications
There are a lot of Würth Elektronik
691301710002 Terminal Blocks applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
