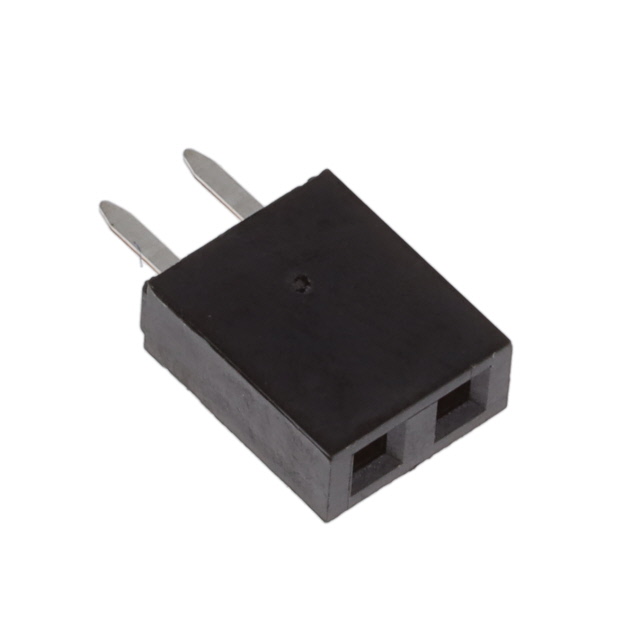

68685-302LF
Or copy the link below:
- Mfr.Part #
- 68685-302LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 2POS 0.1 GOLD PCB
- Stock
- 251,750
- In Stock ：
- 251,750
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Plating :
- GXT, Gold
- Insulation Material :
- Polyphenylene Sulfide (PPS)
- Number of Contacts :
- 2
- Housing Color :
- Black
- Series :
- Dubox™
- Mount :
- Through Hole
- Number of Rows :
- 1
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Material :
- Phosphor Bronze
- Pitch - Mating :
- 0.100 2.54mm
- Style :
- Board to Board
- Voltage - Rated :
- 1000V
- Min Operating Temperature :
- -65°C
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Insulation Color :
- Black
- Contact Resistance :
- 15mOhm
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Contact Finish - Post :
- Tin
- Length :
- 5.51mm
- Fastening Type :
- Push-Pull
- Contact Length - Post :
- 0.115 2.92mm
- Max Operating Temperature :
- 125°C
- Number of Positions :
- 2
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Housing Material :
- Polyphenylene
- Radiation Hardening :
- No
- Contact Shape :
- Square
- Contact Type :
- Female Socket
- Insulation Height :
- 0.276 7.00mm
- Packaging :
- Tube
- Factory Lead Time :
- 8 Weeks
- Max Voltage Rating (AC) :
- 1kV
- Orientation :
- Straight
- Connector Type :
- Receptacle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- Gold or Gold, GXT™
- Operating Temperature :
- -65°C~125°C
- Depth :
- 2.54mm
- Number of Positions Loaded :
- All
- Pitch :
- 2.54mm
- Color :
- Black
- Datasheets
- 68685-302LF
1 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold or Gold, GXT™ Polyphenylene Sulfide (PPS) 2 Positions Female Socket
68685-302LF Overview
The product is packaged in Receptacle.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the Dubox™ Series.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -65°C is required for this device.The device could be used for the following application: Automotive, General Purpose, Industrial, Telecommunications.Part Through Hole is mounted to the part.As a result, the device runs at -65°C~125°C Operating Temperature.
68685-302LF Features
Dubox™ series
68685-302LF Applications
There are a lot of Amphenol ICC (FCI)
68685-302LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
