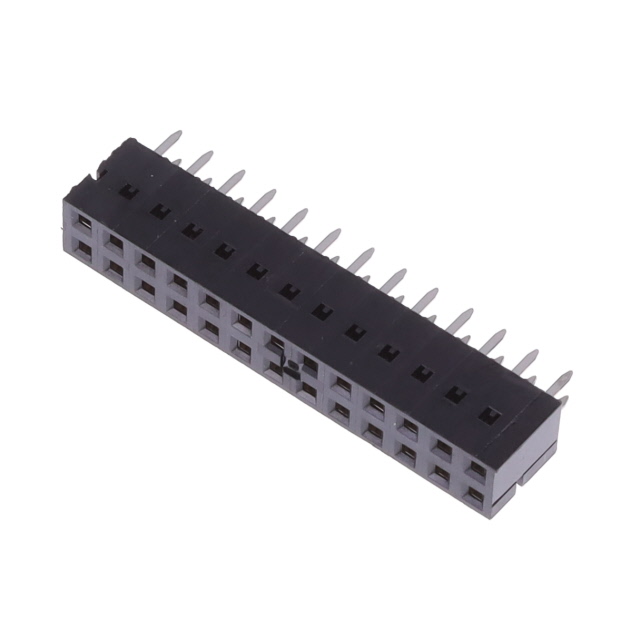

68683-613
Or copy the link below:
- Mfr.Part #
- 68683-613
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 26POS 0.1 GOLD PCB
- Stock
- 57
- In Stock ：
- 57
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Number of Rows :
- 2
- Style :
- Board to Board
- Color :
- Black
- RoHS Status :
- Non-RoHS Compliant
- Contact Resistance :
- 20mOhm
- Housing Color :
- Black
- Lead Free :
- Contains Lead
- Packaging :
- Tube
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Finish - Post :
- Tin
- Number of Positions :
- 26
- Orientation :
- Straight
- Current Rating :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 8 Weeks
- Number of Contacts :
- 26
- Pitch - Mating :
- 0.100 2.54mm
- Pitch :
- 2.54mm
- Width :
- 5.08mm
- Connector Type :
- Receptacle
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Series :
- Dubox™
- Insulation Height :
- 0.276 7.00mm
- Housing Material :
- Polyphenylene
- Depth :
- 5.08mm
- Insulation Color :
- Black
- Max Voltage Rating (AC) :
- 1kV
- Contact Type :
- Female Socket
- Contact Plating :
- Gold
- Operating Temperature :
- -65°C~125°C
- Mounting Type :
- Through Hole
- Radiation Hardening :
- No
- Contact Material :
- Phosphor Bronze
- Contact Length - Post :
- 0.115 2.92mm
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Fastening Type :
- Push-Pull
- Termination :
- Solder
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Gender :
- FEMALE
- Mount :
- Through Hole
- Contact Shape :
- Square
- Length :
- 33.45mm
- Voltage - Rated :
- 1000V
- Contact Finish - Mating :
- Gold
- Datasheets
- 68683-613
68683-613 Documents
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyphenylene Sulfide (PPS), Glass Filled 26 Positions Female Socket
68683-613 Overview
Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the Dubox™ Series, it belongs to the range of products of that series.This device may be used for the purpose of Automotive, General Purpose, Industrial, Telecommunications.Through Hole represents the mounting point for the part.-65°C~125°C Operating Temperature is the default operating temperature for the device.
68683-613 Features
Dubox™ series
68683-613 Applications
There are a lot of Amphenol ICC (FCI)
68683-613 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
