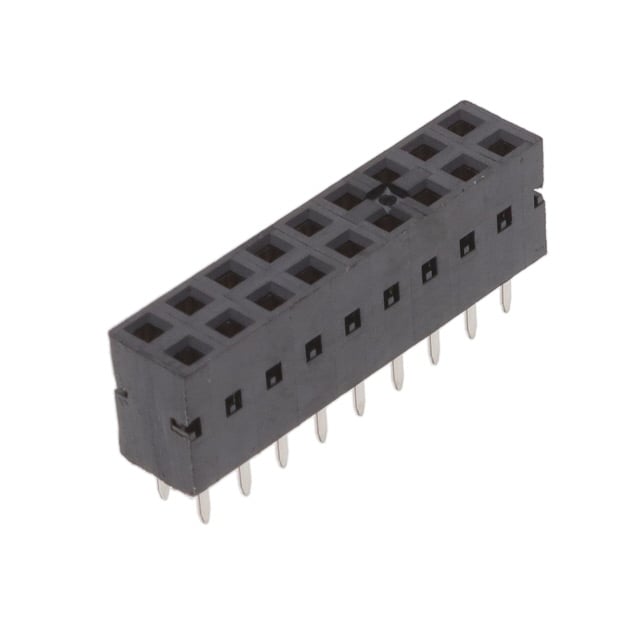

68683-309LF
Or copy the link below:
- Mfr.Part #
- 68683-309LF
- Manufacturer
- Amphenol Communications Solutions
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 18POS 0.1 GOLD PCB
- Stock
- 414
- In Stock ：
- 414
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol Communications Solutions
- Product Category :
- Headers, Receptacles, Female Sockets
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Contact Material :
- Phosphor Bronze
- Length :
- 23.29mm
- Connector Type :
- Receptacle
- Color :
- Black
- Gender :
- FEMALE
- Number of Rows :
- 2
- Packaging :
- Tube
- Depth :
- 5.08mm
- Number of Contacts :
- 18
- Insulation Height :
- 0.276 7.00mm
- Contact Shape :
- Square
- Max Operating Temperature :
- 125°C
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Pitch - Mating :
- 0.100 2.54mm
- Contact Plating :
- Gold
- Fastening Type :
- Push-Pull
- Min Operating Temperature :
- -65°C
- Mounting Type :
- Through Hole
- Housing Color :
- Black
- Applications :
- Automotive, General Purpose, Industrial, Telecommunications
- Number of Positions :
- 18
- Housing Material :
- Polyphenylene
- Current Rating :
- 3A
- Contact Length - Post :
- 0.115 2.92mm
- Voltage - Rated :
- 1000V
- Style :
- Board to Board
- Mount :
- Through Hole
- Insulation Material :
- Polyphenylene Sulfide (PPS), Glass Filled
- Series :
- Dubox™
- Contact Finish - Post :
- Tin
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Factory Lead Time :
- 8 Weeks
- Operating Temperature :
- -65°C~125°C
- Orientation :
- Straight
- Contact Finish - Mating :
- Gold
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Female Socket
- Insulation Color :
- Black
- Pitch :
- 2.54mm
- Datasheets
- 68683-309LF
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tube Gold Polyphenylene Sulfide (PPS), Glass Filled 18 Positions Female Socket
68683-309LF Overview
A Receptacle package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tube case.It is part of the Dubox™ Series of products.Whenever it's below 125°C, it's best to use it.The device must operate at a temperature of -65°C at all times.It is possible for the device to be used for the application Automotive, General Purpose, Industrial, Telecommunications.Through Hole mounts the part.There is no operating temperature for the device.
68683-309LF Features
Dubox™ series
68683-309LF Applications
There are a lot of Amphenol ICC (FCI)
68683-309LF Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
