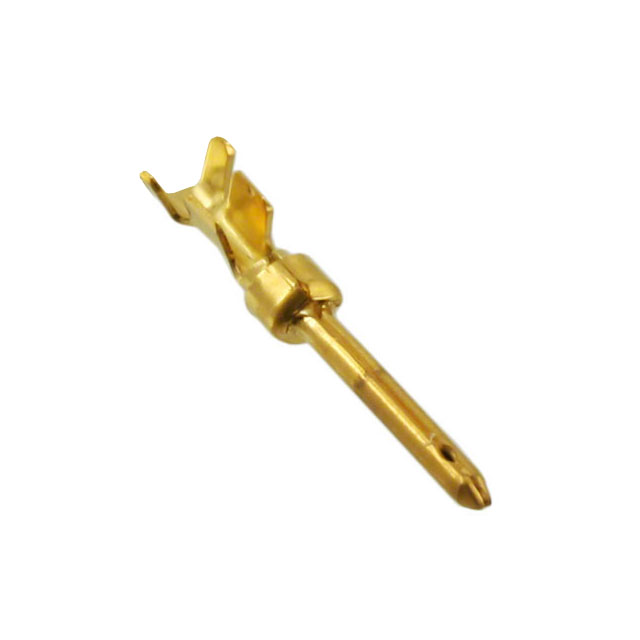

66505-9
Or copy the link below:
- Mfr.Part #
- 66505-9
- Manufacturer
- Accelerated Memory Production, Inc.
- Package / Case
- Datasheet
- Download
- Description
- D-SUB SOCKET, 28-24AWG, CRIMP GO
- Stock
- 276
- In Stock ：
- 276
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Accelerated Memory Production, Inc.
- Product Category :
- D-Sub Connector Assemblies
- Wire Gauge :
- 24-28 AWG
- HTS Code :
- 8536.90.40.00
- Type :
- Stamped
- Wire Gauge (Max) :
- 28 AWG
- Pin or Socket :
- Socket
- ECCN Code :
- EAR99
- Packaging :
- Bulk
- ELV :
- Compliant
- Number of Terminations :
- 1
- Contact Material :
- Phosphor Bronze
- Contact Resistance :
- 15mOhm
- Circuit Application :
- Signal
- Orientation :
- Straight
- Shielding :
- Unshielded
- Mount :
- CABLE
- REACH SVHC :
- No SVHC
- Max Operating Temperature :
- 105°C
- MIL Conformance :
- No
- Current Rating :
- 1.2A
- Material :
- Bronze
- Max Current Rating :
- 1.2A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- RoHS Status :
- RoHS Compliant
- Cable Entry-Min :
- 0.03 inch
- Contact Termination :
- Crimp
- IEC Conformance :
- No
- Insulation Diameter :
- 1.02 mm
- DIN Conformance :
- No
- Wire/Cable Gauge :
- 24 AWG
- Depth :
- 2.16mm
- Pbfree Code :
- yes
- Length :
- 14.1mm
- Contact Design :
- LOOSE
- Factory Lead Time :
- 11 Weeks
- Series :
- AMPLIMITE HDP-20
- Published :
- 2004
- Radiation Hardening :
- No
- Lead Free :
- Lead Free
- Wire Gauge (Min) :
- 24 AWG
- Gender :
- FEMALE
- Cable Entry-Max :
- 0.04 inch
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Assembly Item Name :
- Contact
- Contact Finish :
- Gold
- Min Operating Temperature :
- -55°C
- Datasheets
- 66505-9
