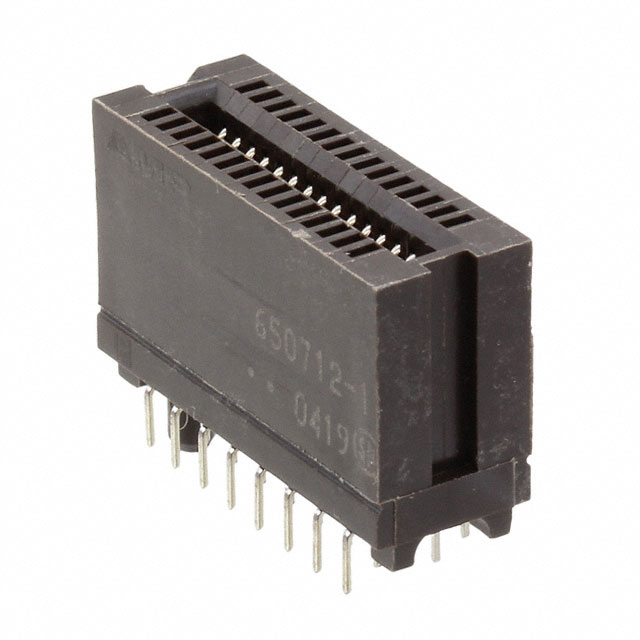

650712-1

Share

Or copy the link below:

Mfr.Part #
650712-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN EDGE DUAL FMALE 30POS 0.050
Stock
8,725
In Stock :
8,725

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Edgeboard Connectors
Mount :
Through Hole
Card Thickness :
1.5748mm
Housing Material :
Thermoplastic
Body Breadth :
0.35 inch
Radiation Hardening :
No
Pitch :
1.27mm
JESD-609 Code :
e0
Mixed Contacts :
No
Underplate Material :
Nickel
Connector Type :
CARD EDGE CONNECTOR
Reliability :
COMMERCIAL
Operating Temperature (Max) :
85°C
IEC Conformance :
No
Gender :
FEMALE
Body Depth :
0.61 inch
Contact Material :
Bronze
Durability :
100 Cycles
Number Of PCB Rows :
4
Withdrawl Force-Min :
.139 N
Contact Style :
BELLOWED TYPE
Contact Plating :
Gold
Dielectric Withstanding Voltage :
500VAC V
Body/Shell Style :
Receptacle
Packaging :
Bulk
Number of Conductors :
ONE
Lead Length :
2.54mm
Contact Pattern :
RECTANGULAR
MIL Conformance :
No
Rated Current (Signal) :
1A
PCB Contact Pattern :
STAGGERED
Pbfree Code :
No
DIN Conformance :
No
Termination :
Solder
Operating Temperature (Min) :
-55°C
Insulation Resistance :
1000000000Ohm
Additional Feature :
POLARIZED, STAGGERED CONFIGURATION
Body Length or Diameter :
0.98 inch
Color :
Brown
RoHS Status :
Non-RoHS Compliant
Reference Standard :
UL, CSA
Option :
GENERAL PURPOSE
Number of Rows :
2
Filter Feature :
No
ELV :
Compliant
Number of Contacts :
30
Orientation :
Straight
Length - Termination :
0.1 inch
Datasheets
650712-1
Introducing Edgeboard Connectors TE Connectivity AMP Connectors 650712-1 from Chip IC,where excellence meets affordability. This product stands out with its 650712-1 pinout, 650712-1 datasheet PDF, 650712-1 amp .Beyond Edgeboard Connectors TE Connectivity AMP Connectors 650712-1 ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 650712-1


Female Brown 1.27mm Bronze 2 Rows Bulk Solder

650712-1 Overview


In accordance with Bulk's specifications, the material was packaged.Connecting the device uses the connector socket CARD EDGE CONNECTOR.In addition, this chip provides the following additional features: POLARIZED, STAGGERED CONFIGURATION

650712-1 Features




650712-1 Applications


There are a lot of TE Connectivity / AMP
650712-1 Edgeboard Connectors applications.


  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
