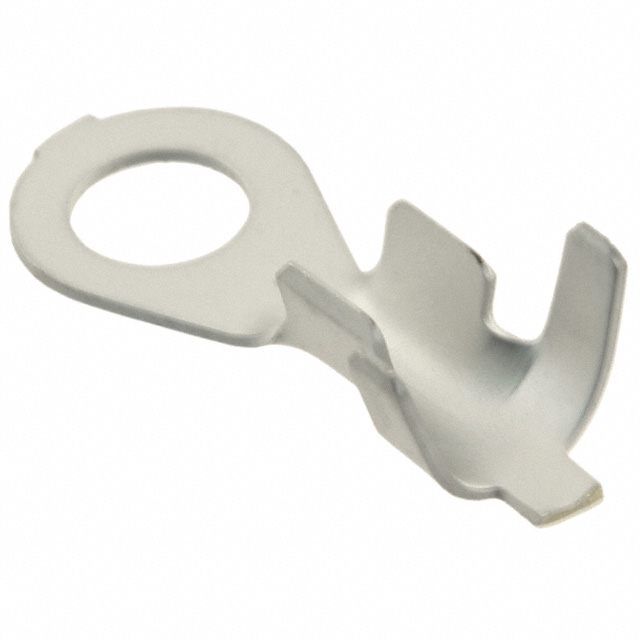

640253-2
Or copy the link below:
- Mfr.Part #
- 640253-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 12-16AWG CRIMP
- Stock
- 228
- In Stock ：
- 228
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Wire Gauge (Max) :
- 16 AWG
- Termination :
- Crimp
- Published :
- 1997
- Wire Cross Section :
- 3 mm2
- Length - Overall :
- 0.784 19.91mm
- Packaging :
- Tape and Reel (TR)
- Thickness :
- 0.018 0.46mm
- Diameter - Inside :
- 2.03 mm
- Pbfree Code :
- yes
- Insulation Diameter :
- 0.125 (3.18mm)
- Depth :
- 8.69mm
- Wire Gauge (Min) :
- 12 AWG
- ECCN Code :
- EAR99
- REACH SVHC :
- No SVHC
- Contact Material :
- Brass
- Wire/Cable Gauge :
- 12 AWG
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- RoHS Status :
- RoHS Compliant
- Insulated Wire Support :
- yes
- Heavy Duty :
- No
- Factory Lead Time :
- 10 Weeks
- Wire Gauge :
- 12-16 AWG
- Stud Diameter :
- 5 mm
- Length :
- 19.9136mm
- Material Thickness :
- 457.2μm
- Width - Outer Edges :
- 0.342 8.69mm
- Tongue Thickness :
- 460μm
- Number of Holes :
- 1
- Mount :
- Free Hanging
- Insulation :
- Non-Insulated
- Terminal and Terminal Block Type :
- RING TERMINAL
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Terminal Type :
- Circular
- Lead Free :
- Not Applicable
- Mounting Type :
- Free Hanging (In-Line)
- HTS Code :
- 8536.90.40.00
- Contact Plating :
- Tin
- Datasheets
- 640253-2
640253-2 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
