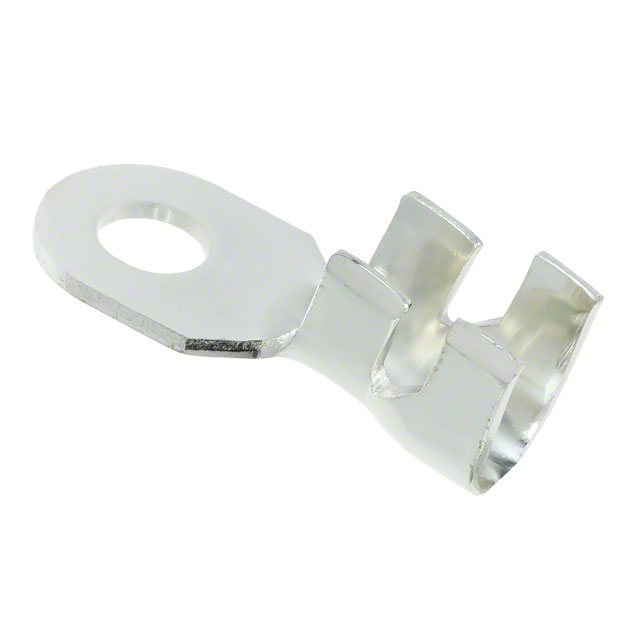

640249-3
Or copy the link below:
- Mfr.Part #
- 640249-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING D-SHAPE 8-10AWG #10
- Stock
- 17,515
- In Stock ：
- 17,515
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Number of Holes :
- 1
- Published :
- 2004
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Free Hanging
- Insulation Diameter :
- 0.190 ~ 0.230 (4.83mm ~ 5.84mm)
- Termination :
- Crimp
- Packaging :
- Tape and Reel (TR)
- Underplate Material :
- Nickel
- Wire Gauge :
- 8-10 AWG
- Terminal Type :
- D-Shaped
- Material Thickness :
- 1.016mm
- Stud Diameter :
- 5 mm
- Insulated Wire Support :
- yes
- Wire Gauge (Min) :
- 8 AWG
- Diameter - Inside :
- 4.06 mm
- Mounting Type :
- Free Hanging (In-Line)
- Contact Finish :
- Tin
- Terminal and Terminal Block Type :
- RING TERMINAL
- Tongue Thickness :
- 1.02mm
- ECCN Code :
- EAR99
- Stud/Tab Size :
- 10 Stud
- RoHS Status :
- RoHS Compliant
- Width - Outer Edges :
- 0.425 10.80mm
- Contact Material :
- Brass
- Wire Gauge (Max) :
- 10 AWG
- Heavy Duty :
- No
- Pbfree Code :
- yes
- Length - Overall :
- 0.962 24.43mm
- HTS Code :
- 8536.90.40.00
- Thickness :
- 0.040 1.02mm
- ELV :
- Compliant
- Wire/Cable Gauge :
- -8 AWG
- Lead Free :
- Not Applicable
- Insulation :
- Non-Insulated
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Factory Lead Time :
- 9 Weeks
- Length :
- 24.4348mm
- Datasheets
- 640249-3
640249-3 datasheet pdf and Terminals - Ring Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
