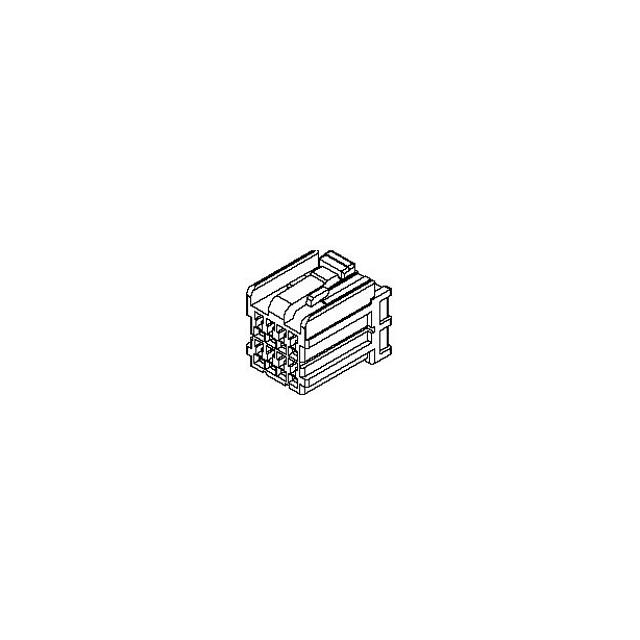

64002-1215

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Fastening Type :

Latch Lock

Type :

Housing

Body Breadth :

0.717 inch

Mounting Style :

Straight

Insulation Resistance :

100000000 Ω

Mounting Option 1 :

Latch

ECCN Code :

EAR99

Gender :

Receptacle

Termination Type :

Crimp

Contact Type :

Female Socket

Number of Rows :

2 Row

Body Orientation :

Straight

Maximum Operating Temperature :

+ 85 C

Product Height (mm) :

21(mm)

Connector Type :

BOARD CONNECTOR

Product Status :

Active

RoHS :

Details

Pitch :

2.5 mm

Contact Gender :

FEMALE

Product Type :

Headers and Wire Housings

Contact Arrangement :

S0P12

Operating Temp Range :

-30C to 85C

Mounting Option 2 :

LOCKING

Operating Temperature :

-30°C ~ 85°C

Product Category :

Headers and Wire Housings

Series :

64002

Insulator Color :

Gray

HTS Code :

8536.69.40.40

Product :

Wire Housings

Housing Color :

Gray

Mixed Contacts :

yes

Application :

Power

Contact Style :

SQ PIN-SKT

Packaging :

Bag

Reference Standard :

UL

Minimum Operating Temperature :

- 30 C

Contact Termination :

Crimp

Number of Contact Rows :

2

Mounting Type :

CABLE

Brand :

Molex

Contact Finish Termination :

Tin

Body Depth :

0.826 inch

Reliability :

COMMERCIAL

Features :

Terminal Position Lock (TPA)

Total Number of Contacts :

12

Product Depth (mm) :

18.2(mm)

Package :

Bulk

Panel Mount :

No

Color :

Black

Reach Compliance Code :

Compliant

Dielectric Withstanding Voltage :

1000VAC V

Product Length (mm) :

16.5(mm)

Pitch (mm) :

2.5(mm)

Number of Positions :

12 Position

Number of Contacts :

12(POS)

Row Spacing :

0.205 (5.20mm)

Housing Material :

Polyester

Current Rating (Max) :

12(A)
