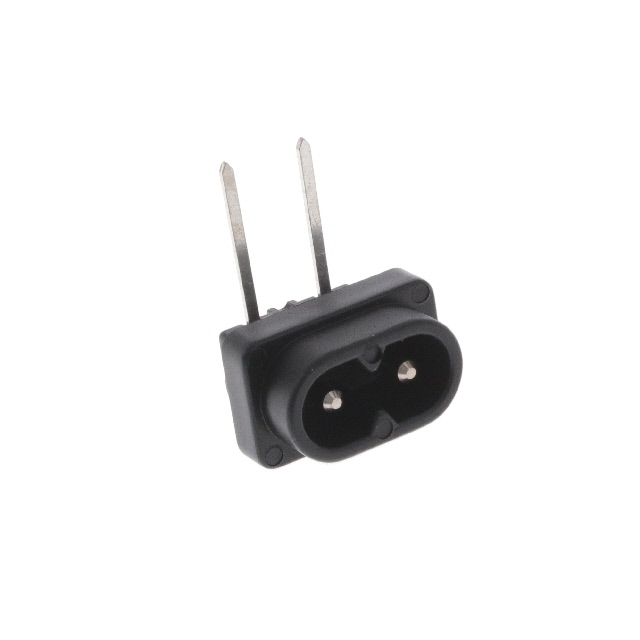

6160.0010

Manufacturer :

SCHURTER

Product Category :

Power Entry Modules (PEM)

Connector Style :

IEC 320-C8, Non-Polarized

Series :

2572

Panel Thickness :

0.217 5.50mm

Current Rating :

2.5A

Accomodates a Fuse :

No

Approval Agency :

cCSAus, UL, VDE

Material Flammability Rating :

UL94 V-0

Mounting Type :

Panel Mount, Through Hole, Right Angle

Shell Material :

PA6

Packaging :

Bulk

Orientation :

Straight

Total Number of Contacts :

2

Moisture Sensitivity Level (MSL) :

Vendor Undefined

Flammability Rating :

UL94 V-0

Coupling Type :

Snap

Voltage - Rated :

250V

HTS Code :

8536.69.40.30

MIL Conformance :

No

Voltage - IEC :

250VAC

DIN Conformance :

No

ECCN Code :

EAR99

Number of Positions :

2

Connector Type :

Receptacle, Male Pins

Option :

GENERAL PURPOSE

Panel Cutout Dimensions :

Rectangular - 20.60mm x 12.00mm

Weight :

4.840001g

Factory Lead Time :

13 Weeks

Filter Type :

Unfiltered - Commercial

IEC Conformance :

yes

RoHS Status :

ROHS3 Compliant

Termination :

Solder

Current :

2.5A

Ingress Protection :

IP20

Gender :

Male

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mount :

Panel, Through Hole
