- Mfr.Part #
- 6-1761616-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN DIFF ARRAY PLUG 296POS SMD
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- PCB Mount Retention :
- Without
- Number of Contacts :
- 296
- Insulation Resistance :
- 5GOhm
- Packaging :
- Tray
- Min Operating Temperature :
- 0°C
- Orientation :
- Vertical
- Number of Rows :
- 18
- Connector Type :
- Differential Pair Array, Male
- Series :
- STEP-Z
- Stack Height (Mating) :
- 17mm 23mm 27mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Max Operating Temperature :
- 100°C
- PCB Thickness :
- 1.57mm
- Housing Material :
- Thermoplastic
- Contact Finish :
- Gold
- Operating Supply Voltage :
- 48V
- Sealable :
- No
- Housing Color :
- Natural
- Stackable :
- yes
- ELV :
- Compliant
- Contact Finish Thickness - Mating :
- 760 nm
- Row Spacing :
- 2 mm
- Stack Height :
- 23mm
- Height :
- 12.926949mm
- Mounting Type :
- Surface Mount
- Contact Shape :
- Square
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Published :
- 2007
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 1A
- Factory Lead Time :
- 14 Weeks
- Mount :
- Surface Mount
- Pitch :
- 0.051 1.30mm
- Number of Positions :
- 296 Signal (148 Pair)
- Height Above Board :
- 0.510 12.95mm
- Datasheets
- 6-1761616-2

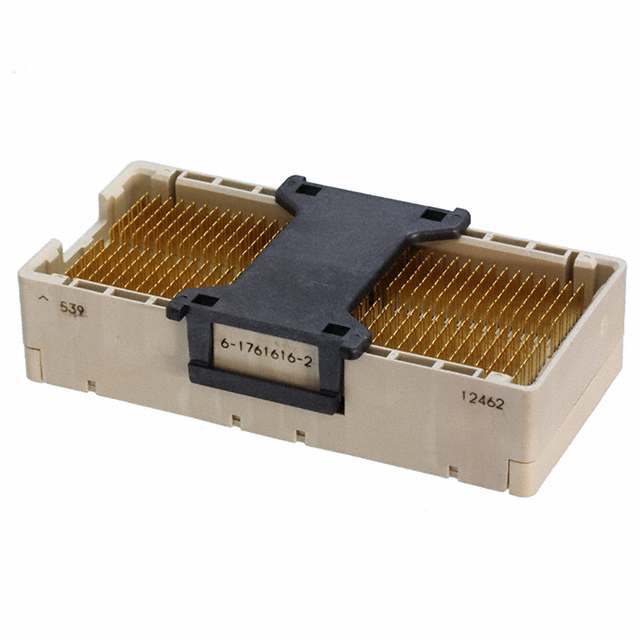

Differential Pair Array, Male Tray 18 Rows 0.051 1.30mm Surface Mount 296 Signal (148 Pair) Positions STEP-Z Gold Solder
6-1761616-2 Overview
Packaging for this item is Differential Pair Array, Male.It is necessary to use a Tray case for packaging the product.There is a mounting type of Surface Mount for this device.This product is part of the STEP-Z Series.This part requires a Surface Mount socket for mounting.You should use it when it's below 100°C.A minimum temperature of 0°C is required for the operation of this device.Since this device is suitable for operation with a 48V supply, it can be used with that supply.
6-1761616-2 Features
STEP-Z series
Package / Case: Tray
Mounting Type:Surface Mount
Max Operating temperature at 0°C
6-1761616-2 Applications
There are a lot of TE Connectivity AMP Connectors
6-1761616-2 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
