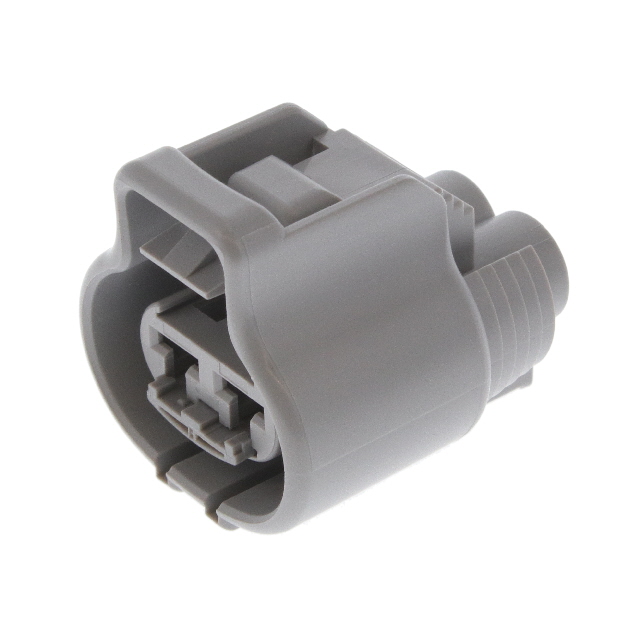

6-176146-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Housings, Boots

Number of Positions :

2

Body Material :

PBT

ELV :

Compliant

Color :

Gray

Termination :

Quick Connect

Wire Gauge (Min) :

12 AWG

Connector Type :

PLUG

Housing Color :

Grey

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Option :

GENERAL PURPOSE

Empty Shell :

yes

Mount :

Cable, Free Hanging

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

No

Housing Material :

Polybutylene

RoHS Status :

RoHS Compliant

Min Operating Temperature :

-22°C

Mating Tab Width :

4.8mm

Length :

31.6mm

Wire Gauge (Max) :

20 AWG

Material :

Plastic

Style :

Housing

Mixed Contacts :

No

Gender :

Female, Receptacle

Hybrid Connector :

No

Factory Lead Time :

17 Weeks

Flammability Rating :

UL94 V-2

Width :

27.6098mm

Series :

EconoSeal III 187

Number of Rows :

1

Depth :

31.6mm

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Polarized :

yes

Orientation :

Straight

Pbfree Code :

yes

Circuit Application :

Signal

Current Rating :

25A

Max Operating Temperature :

221°C

Lead Free :

Not Applicable

MIL Conformance :

No

Terminal Size :

0.187 4.75mm

Filter Feature :

No

Pitch :

7.9mm

Total Number of Contacts :

2

Stacking Direction :

Side to Side

IEC Conformance :

No

Terminal Type :

Quick Connect, Disconnect

Height :

27.5mm

Note :

Contacts Not Included

Wire/Cable Gauge :

20 AWG

Published :

1999
