6-103645-9

Share

Or copy the link below:

Mfr.Part #
6-103645-9
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT 20POS IDC 22-26AWG
Stock
142
In Stock :
142

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Free Hanging, Panel Mount
Contact Gender :
FEMALE
Lead Free :
Contains Lead
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Contacts :
20
Wire Type :
Discrete or Ribbon Cable
Housing Material :
Thermoplastic
Number of Rows :
1
Termination :
IDC
Wire/Cable Gauge :
22 AWG
RoHS Status :
RoHS Compliant
Connector Type :
Receptacle
Color :
Black
Number of Positions :
20
Min Operating Temperature :
-65°C
Packaging :
Tube
Factory Lead Time :
18 Weeks
Cable Termination :
IDC
Max Operating Temperature :
105°C
Operating Supply Voltage :
250V
Length :
50.74mm
Fastening Type :
Latch Lock
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
ELV :
Compliant
Mount :
Free Hanging
Published :
2008
Insulation Diameter :
1.37 mm
Contact Finish :
Tin-Lead
Wire Gauge (Min) :
22 AWG
Wire/Cable Type :
Discrete
Mounting Type :
Free Hanging (In-Line)
Orientation :
Straight
Current Rating :
3A
Gender :
Receptacle
Insulation Resistance :
5GOhm
Wire Gauge (Max) :
26 AWG
Wire Gauge :
22-26 AWG
Housing Color :
Black
Feature :
Closed End
Contact Resistance :
15mOhm
Row Spacing :
2.54 mm
Depth :
15.24mm
Radiation Hardening :
No
Contact Material :
Bronze
Contact Finish Thickness :
100.0μin 2.54μm
Contact Plating :
Tin
Approval Agency :
CSA
Series :
AMPMODU MTE
Flammability Rating :
UL94 V-0
Contact Type :
Female Socket
Pitch :
0.100 2.54mm
Contact Current Rating :
3A
Datasheets
6-103645-9
Introducing Free Hanging, Panel Mount TE Connectivity AMP Connectors 6-103645-9 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 6-103645-9 pinout, 6-103645-9 datasheet PDF, 6-103645-9 amp .Beyond Free Hanging, Panel Mount TE Connectivity AMP Connectors 6-103645-9 ,we also offer 3-640440-5, 04ZR-8M-P, 61201023021, Our vast inventory has you covered. Contact us now for immediate solutions.

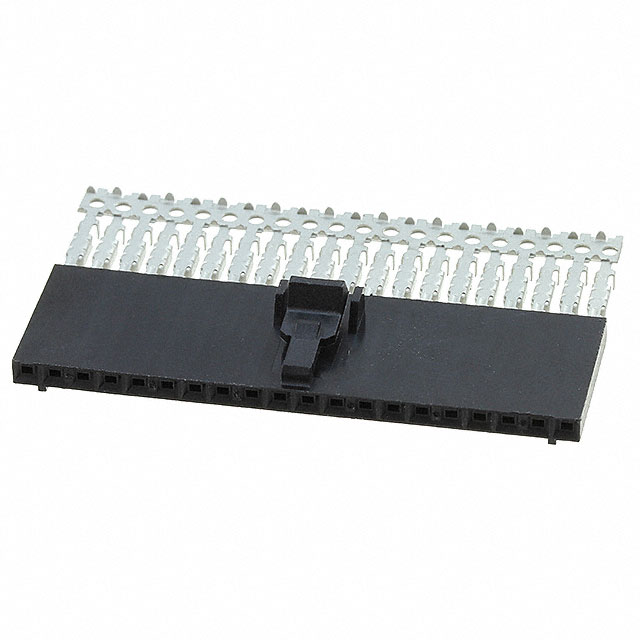

TE Connectivity AMP Connectors 6-103645-9


6-103645-9 datasheet pdf and Rectangular Connectors - Free Hanging, Panel Mount product details from TE Connectivity AMP Connectors stock available at Xinshop
