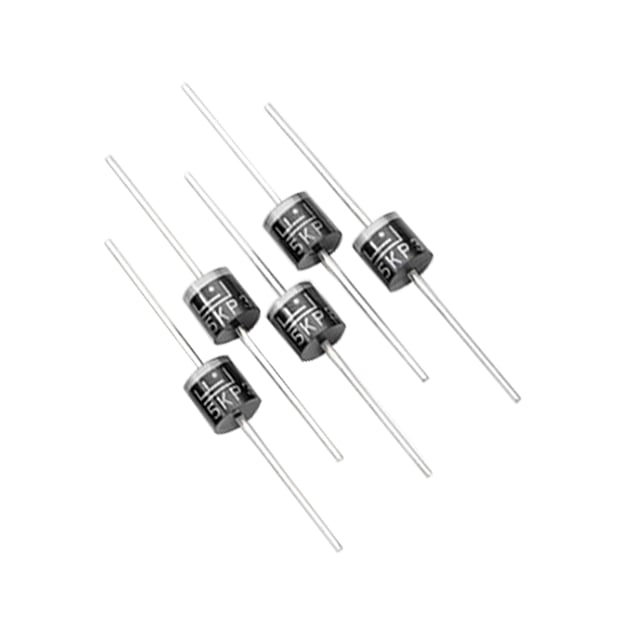

5KP8.0A-B

Manufacturer :

Littelfuse

Product Category :

Terminal Form :

Wire

JESD-609 Code :

e3

Packaging :

Bulk

Voltage - Reverse Standoff (Typ) :

8V

Series :

5KP

Type :

Zener

Leakage Current :

150μA

Operating Temperature :

-55°C~175°C TJ

Polarity :

Unidirectional

Rep Pk Reverse Voltage-Max :

8V

Power Dissipation-Max :

8W

Mount :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Mounting Type :

Through Hole

Terminal Finish :

Matte Tin (Sn)

Diode Element Material :

SILICON

Reverse Standoff Voltage :

8V

Peak Pulse Current :

375A

Peak Pulse Power :

5kW

Test Current :

5mA

RoHS Status :

ROHS3 Compliant

Reverse Breakdown Voltage :

8.89V

Pin Count :

2

Time@Peak Reflow Temperature-Max (s) :

40

Number of Terminations :

2

Non-rep Peak Rev Power Dis-Max :

5000W

Number of Unidirectional Channels :

1

Number of Pins :

2

Clamping Voltage :

13.6V

Case Connection :

Isolated

Applications :

GENERAL PURPOSE

Factory Lead Time :

18 Weeks

Number of Elements :

1

Current - Peak Pulse (10/1000μs) :

375A

Additional Feature :

UL RECOGNIZED

Package / Case :

P600, Axial

Configuration :

Single

Peak Reflow Temperature (Cel) :

260

Breakdown Voltage :

9.36V

Power - Peak Pulse :

5000W 5kW

Power Line Protection :

No

Breakdown Voltage-Max :

9.83V
