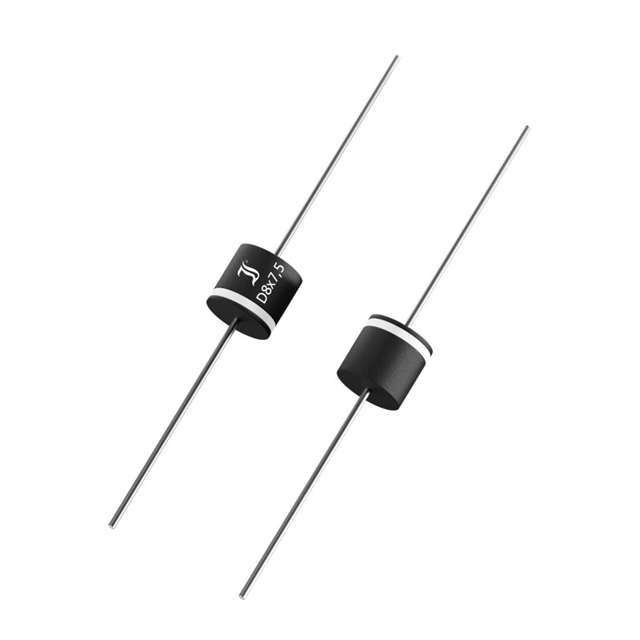

5KP20C

Manufacturer :

Diotec Semiconductor

Product Category :

Diameter :

9.1mm

Max Surge Current :

154A

Peak Pulse Power :

5kW

Voltage - Breakdown (Min) :

22.2V

Supplier Device Package :

P600

Type :

Zener

Number of Elements :

1

Max Output Current :

157.4A

Min Operating Temperature :

-55°C

Bidirectional Channels :

1

Operating Temperature :

-55°C~175°C TJ

Package / Case :

P600, Axial

Peak Pulse Current :

157.4A

Max Power Dissipation :

8W

Direction :

Unidirectional

Clamping Voltage :

32.4V

Polarity :

Bidirectional

Test Current :

5mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Leakage Current :

2µA

Series :

5KP

Packaging :

Tape and Reel (TR)

Mounting Type :

Through Hole

Lead Free :

Lead Free

Radiation Hardening :

No

Number of Bidirectional Channels :

1

Breakdown Voltage :

22.2V

REACH SVHC :

No SVHC

Voltage - Clamping (Max) @ Ipp :

32.4V

Max Operating Temperature :

175°C

Operating Supply Voltage :

20V

Capacitance :

1.075nF

Termination :

Axial

Number of Pins :

2

Power Line Protection :

No

Power Dissipation :

5kW

Factory Lead Time :

17 Weeks

Applications :

GENERAL PURPOSE

Mount :

Through Hole

Current - Peak Pulse (10/1000μs) :

157.4A

Reverse Standoff Voltage :

20V

Number of Channels :

1

Length :

9.1mm

RoHS Status :

ROHS3 Compliant

Composition :

Zener

Max Breakdown Voltage :

24.5V

Power - Peak Pulse :

5000W 5kW

Voltage - Reverse Standoff (Typ) :

20V

Reverse Breakdown Voltage :

22.2V
