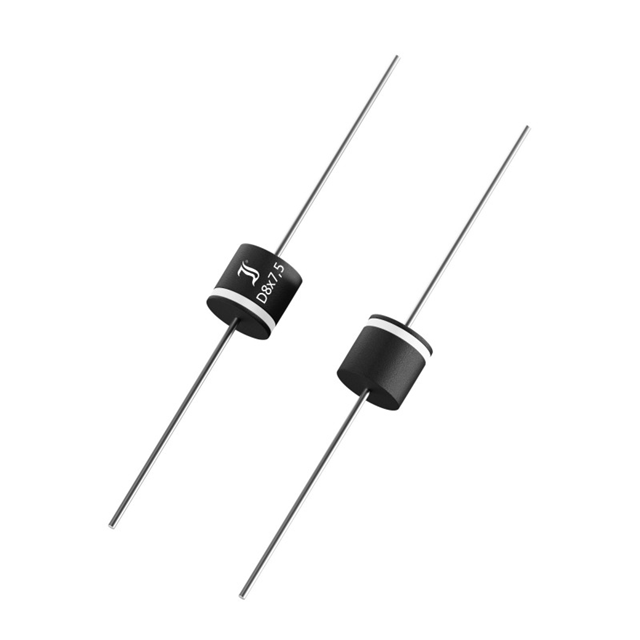

5KP14

Manufacturer :

Diotec Semiconductor

Product Category :

Type :

Zener

Power - Peak Pulse :

5000W 5kW

Diameter :

9.1mm

Length :

9.1mm

Power Line Protection :

No

Series :

5KP

Number of Channels :

1

Lead Free :

Lead Free

Voltage - Rated DC :

14V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Power Rating :

5kW

Leakage Current :

10μA

Number of Pins :

2

Composition :

Zener

Mounting Type :

Through Hole

Operating Temperature :

-55°C~175°C TJ

Min Operating Temperature :

-55°C

Number of Elements :

1

Package / Case :

P600, Axial

Max Surge Current :

216A

Supplier Device Package :

P600

Packaging :

Tape and Reel (TR)

Mount :

Through Hole

Current - Peak Pulse (10/1000μs) :

219.8A

Polarity :

Unidirectional

Reverse Breakdown Voltage :

15.6V

RoHS Status :

ROHS3 Compliant

Peak Pulse Power :

5kW

Weight :

2.099991g

Termination :

Axial

Voltage - Clamping (Max) @ Ipp :

23.2V

Breakdown Voltage :

15.6V

Voltage - Breakdown (Min) :

15.6V

Voltage - Reverse Standoff (Typ) :

14V

Unidirectional Channels :

1

Operating Supply Voltage :

14V

Published :

2005

Max Operating Temperature :

175°C

Test Current :

5mA

Factory Lead Time :

17 Weeks

Applications :

GENERAL PURPOSE

Reverse Standoff Voltage :

14V

Number of Unidirectional Channels :

1

Clamping Voltage :

23.2V

Peak Pulse Current :

219.8A
