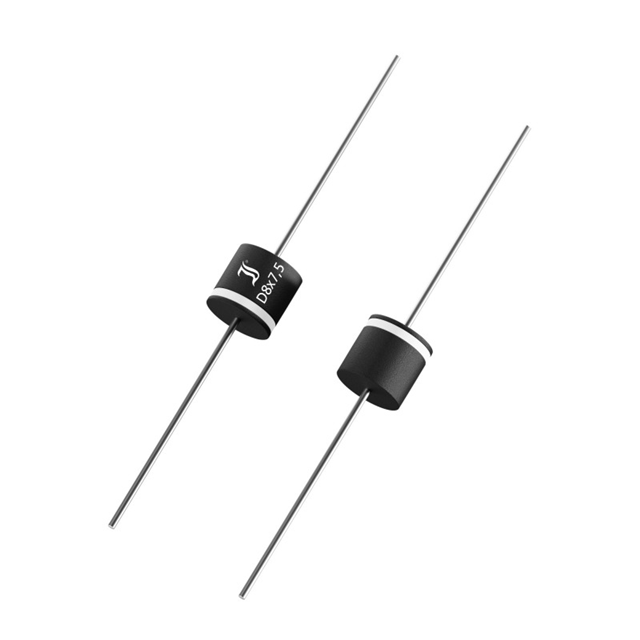

5KP120CA

Manufacturer :

Diotec Semiconductor

Product Category :

Number of Elements :

1

ECCN Code :

EAR99

JESD-30 Code :

O-PALF-W2

Pbfree Code :

No

Reverse Standoff Voltage :

120V

Polarity :

Bidirectional

Breakdown Voltage :

140V

Packaging :

Bulk

Mount :

Through Hole

Configuration :

Single

RoHS Status :

ROHS3 Compliant

Terminal Form :

Wire

Power - Peak Pulse :

5000W 5kW

Published :

2014

Power Dissipation-Max :

8W

Operating Temperature :

-55°C~175°C TJ

Power Line Protection :

No

JESD-609 Code :

e3

Applications :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Peak Reflow Temperature (Cel) :

260

Factory Lead Time :

18 Weeks

Peak Pulse Current :

26.4A

Package / Case :

P600, Axial

Peak Pulse Power :

5kW

Mounting Type :

Through Hole

Non-rep Peak Rev Power Dis-Max :

5000W

Type :

Zener

Case Connection :

Isolated

Diode Element Material :

SILICON

Voltage - Breakdown (Min) :

133V

Current - Peak Pulse (10/1000μs) :

26.4A

Pin Count :

2

Terminal Finish :

Matte Tin (Sn)

Bidirectional Channels :

1

Time@Peak Reflow Temperature-Max (s) :

40

Clamping Voltage :

193V

Series :

5KP

Additional Feature :

UL RECOGNIZED

Number of Terminations :

2
