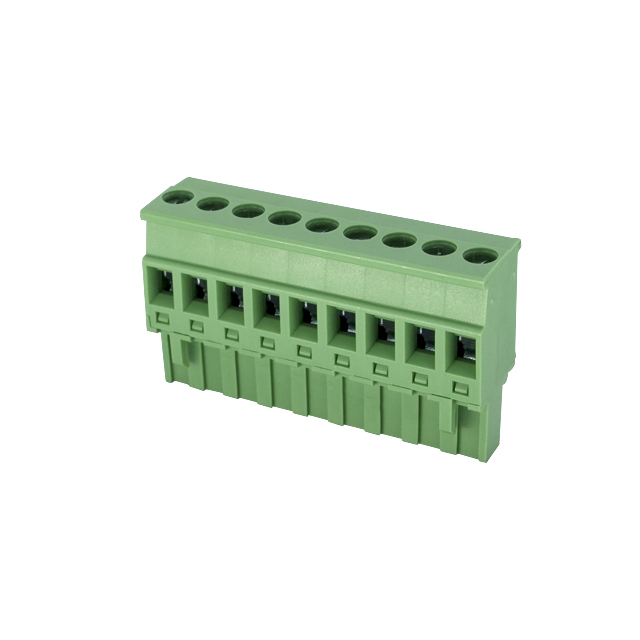

5ESDP-09P
Or copy the link below:
- Mfr.Part #
- 5ESDP-09P
- Manufacturer
- DINKLE Corporation USA
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 9POS 5.00MM SCRW PLG
- Stock
- 184
- In Stock ：
- 184
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- DINKLE Corporation USA
- Product Category :
- Headers, Plugs and Sockets
- Wire Gauge or Range - mm² :
- 0.2-2.5mm²
- Current - IEC :
- 18A
- Mounting Type :
- Free Hanging (In-Line)
- Features :
- -
- Package :
- Bulk
- Pitch :
- 0.197 (5.00mm)
- Product Status :
- Active
- Plug Wire Entry :
- 90°
- Wire Gauge or Range - AWG :
- 12-30 AWG
- Contact Mating Finish :
- Tin
- Color :
- Green
- Type :
- Plug, Female Sockets
- Number of Positions :
- 9
- Series :
- 5ESDP
- Voltage - UL :
- 300 V
- Operating Temperature :
- -40°C ~ 120°C
- Current - UL :
- 15 A
- Positions Per Level :
- 9
- Header Orientation :
- -
- Number of Levels :
- 1
- Termination Style :
- Screw - Rising Cage Clamp
- Voltage - IEC :
- 600 V
- Datasheets
- 5ESDP-09P
0.197 (5.00mm) Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets 5ESDP Tin
5ESDP-09P Overview
This device is mounted in the Free Hanging (In-Line) position.There is a product in the 5ESDP Series.As a result, the device runs at -40°C ~ 120°C Operating Temperature.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
5ESDP-09P Features
5ESDP series
5ESDP-09P Applications
There are a lot of Dinkle
5ESDP-09P Terminal Blocks applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
