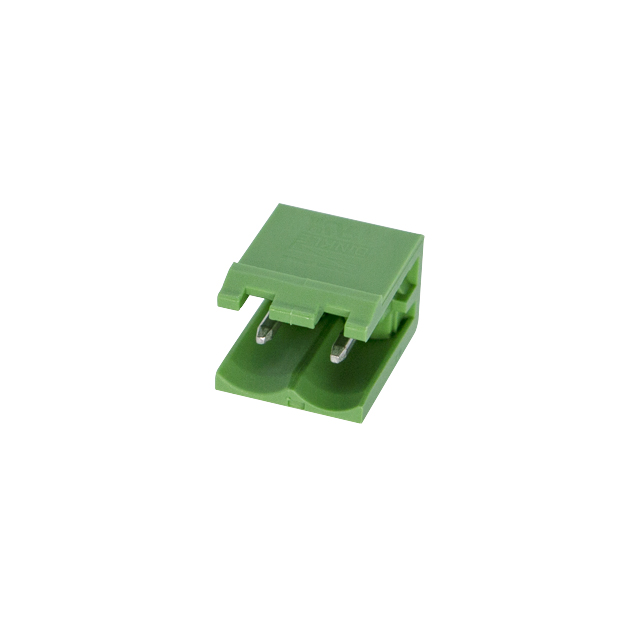

5EHDR-02P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Reach Compliance Code :

Compliant

Type :

Header,Male Pin,Covered(2 Sided)

Manufacturer :

Dinkle Enterprises

Wire Gauge or Range - AWG :

-

Safety Approval :

CE; CSA; CUL; IEC; UL; VDE

Package / Case :

Through Hole,P=5mm

Features :

-

Current - IEC :

18A

Series :

5EHDR

Termination Style :

Solder

Contact Mating Finish :

Tin

RoHS Status :

RoHS Compliant

Plug Wire Entry :

-

Packaging :

Bag-packed

Operating Temperature :

-40°C ~ 120°C

Voltage - IEC :

600 V

Wire Gauge :

10 AWG

Product Status :

Active

Package :

Bulk

Rated Current :

15 A

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Voltage - UL :

300 V

Header Orientation :

90°,Right Angle

Number of Decks :

1

Mounting Type :

Through Hole

Number of Positions :

2

Number of Ways :

2

Pitch :

0.197" 5.00mm

Rated Voltage :

300 V

Positions Per Level :

2

Fastening Method :

Connector

Number of Rows :

1

Current - UL :

15 A

Wire Gauge or Range - mm² :

-

Number of Levels :

1

Color :

Green

Additional Feature :

94V-0, PA66
