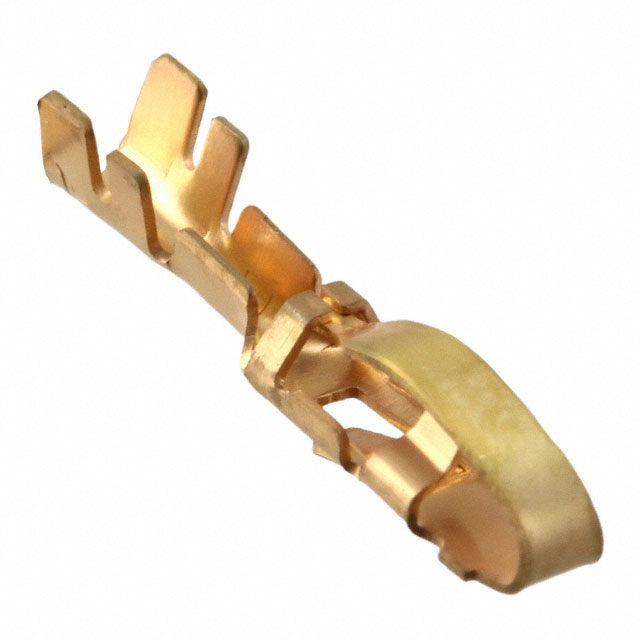

583204-2
Or copy the link below:
- Mfr.Part #
- 583204-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- TERM EDGE AMP LF 22-26AWG CRIMP
- Stock
- 25
- In Stock ：
- 25
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Contacts
- Orientation :
- Straight
- Max Operating Temperature :
- 105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Pitch :
- 3.96mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Pin or Socket :
- Non-Gendered
- Insulation Diameter :
- 1.63 mm
- Contact Finish :
- Gold
- Series :
- Amp-Leaf
- MIL Conformance :
- No
- Max Current Rating :
- 5A
- Wire Gauge :
- 22-26 AWG
- IEC Conformance :
- No
- ELV :
- Compliant
- Min Operating Temperature :
- -55°C
- Gender :
- Male
- Connector Type :
- Socket
- Depth :
- 3.05mm
- DIN Conformance :
- No
- Mount :
- CABLE
- Wire Gauge (Min) :
- 22 AWG
- Height :
- 3.43mm
- Radiation Hardening :
- No
- HTS Code :
- 8536.90.40.00
- Assembly Item Name :
- Contact
- Published :
- 1997
- Wire Gauge (Max) :
- 26 AWG
- Length :
- 14.48mm
- Current Rating :
- 5A
- Contact Resistance :
- 10MOhm
- RoHS Status :
- RoHS Compliant
- Wire/Cable Gauge :
- 26 AWG
- ECCN Code :
- EAR99
- Packaging :
- Tape and Reel (TR)
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Underplate Material :
- Nickel
- Pitch :
- 3.96mm
- Lead Free :
- Not Applicable
- Contact Termination :
- Crimp
- Contact Material :
- Phosphor Bronze
- Connector Support Type :
- CONNECTOR ACCESSORY
- Factory Lead Time :
- 14 Weeks
- Datasheets
- 583204-2
