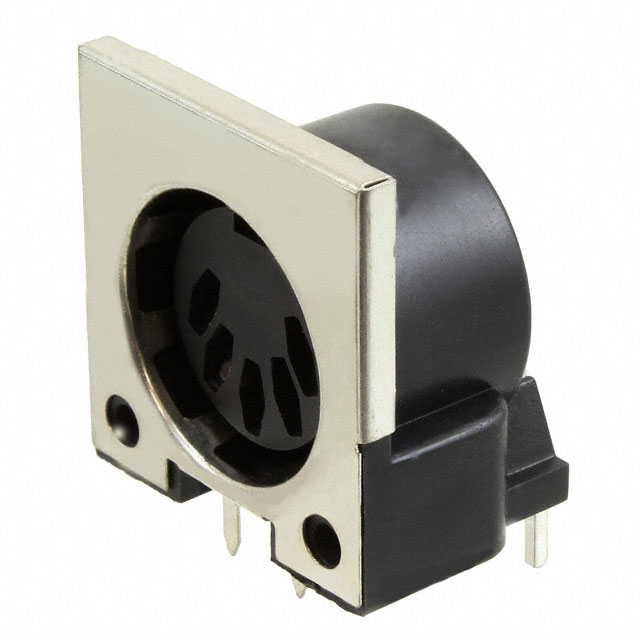

57PC5FS
Or copy the link below:
- Mfr.Part #
- 57PC5FS
- Manufacturer
- Switchcraft / Conxall
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN RCPT FMALE DIN 5POS SOLDER
- Stock
- 1,903
- In Stock ：
- 1,903
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Switchcraft / Conxall
- Product Category :
- Circular Connector Assemblies
- Radiation Hardening :
- No
- Length :
- 20.4mm
- Factory Lead Time :
- 8 Weeks
- Shielding :
- Shielded
- Mounting Type :
- Through Hole, Right Angle
- Published :
- 2002
- Orientation :
- F
- Shell Size - Insert :
- DIN 180 Degree
- EMI Shielded :
- No
- Lead Free :
- Lead Free
- Fastening Type :
- Push-Pull
- DIN Conformance :
- yes
- Package / Case :
- Metal
- Total Number of Contacts :
- 5
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Gender :
- FEMALE
- Current Rating :
- 3A
- IEC Conformance :
- No
- Contact Pitch Circle Diameter :
- 7mm
- Body Breadth :
- 0.839 inch
- MIL Conformance :
- No
- Number of Positions :
- 5
- Insert Material :
- Plastic
- Connector Type :
- Receptacle, Female Sockets
- Number of Ports :
- 1
- Contact Finish - Mating :
- Tin
- Mount :
- PCB, Through Hole
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Ground
- Contact Style :
- BELLOWED TYPE
- Voltage - Rated :
- 34VDC
- Reliability :
- COMMERCIAL
- Height :
- 21.3mm
- Depth :
- 15.2mm
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Datasheets
- 57PC5FS
57PC5FS Documents
Receptacle, Female Sockets Through Hole, Right Angle 5 Positions Solder Tin Bulk F Push-Pull
57PC5FS Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Through Hole, Right Angle mounting type.An orange Bulk case is used to package the product.This package contains an enclosed device in the Metal.Several benefits come from the Ground feature.There is a mounting hole at PCB, Through Hole.
57PC5FS Features
57PC5FS Applications
There are a lot of Switchcraft Inc.
57PC5FS Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
