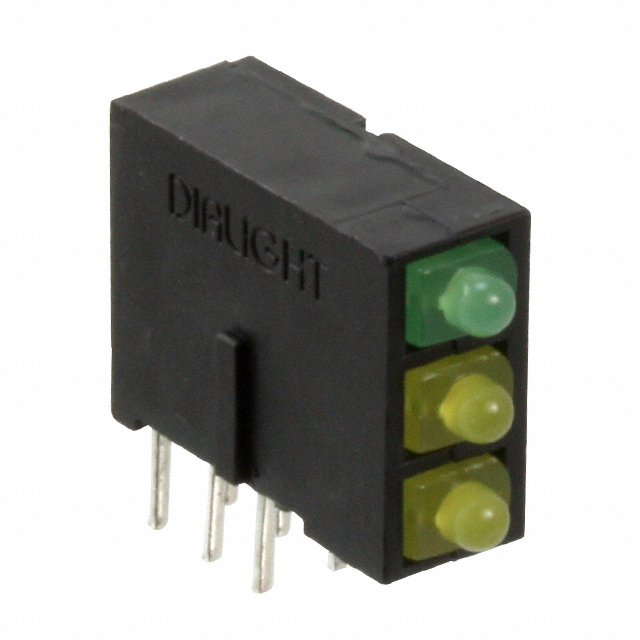

5700100233F
Or copy the link below:
- Mfr.Part #
- 5700100233F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED CBI 2MM 3X1 GRN,YLW,YLW DIFF
- Stock
- 41,556
- In Stock ：
- 41,556
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Lens Type :
- Diffused
- Series :
- 570
- JESD-609 Code :
- e2
- Mounting Feature :
- RADIAL MOUNT
- Surface Mount :
- No
- Factory Lead Time :
- 10 Weeks
- HTS Code :
- 8541.40.20.00
- Published :
- 2011
- Viewing Angle :
- 70°
- Mounting Type :
- Through Hole, Right Angle
- Overall Height :
- 10.17mm
- Terminal Finish :
- Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
- Color :
- Green (x 1), Yellow (x 2)
- Millicandela Rating :
- 10mcd Green, 8mcd Yellow
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Functions :
- 3
- RoHS Status :
- ROHS3 Compliant
- Configuration :
- 3 High
- Terminal Pitch :
- 2.55mm
- Optoelectronic Device Type :
- DUAL COLOR LED ARRAY
- Operating Temperature (Max) :
- 85°C
- Current :
- 25mA Green 30mA Yellow
- Packing Method :
- Bag
- Luminous Intensity :
- 8.0/10.0 mcd
- Number of Terminations :
- 6
- Voltage - Rated :
- 2.2V Green 2.1V Yellow
- Packaging :
- Bulk
- Operating Temperature (Min) :
- -40°C
- Wavelength - Peak :
- 565nm 590nm
- Lens Size :
- 2.90mm Dia
- Lens Style :
- Round with Domed Top
- Datasheets
- 5700100233F
