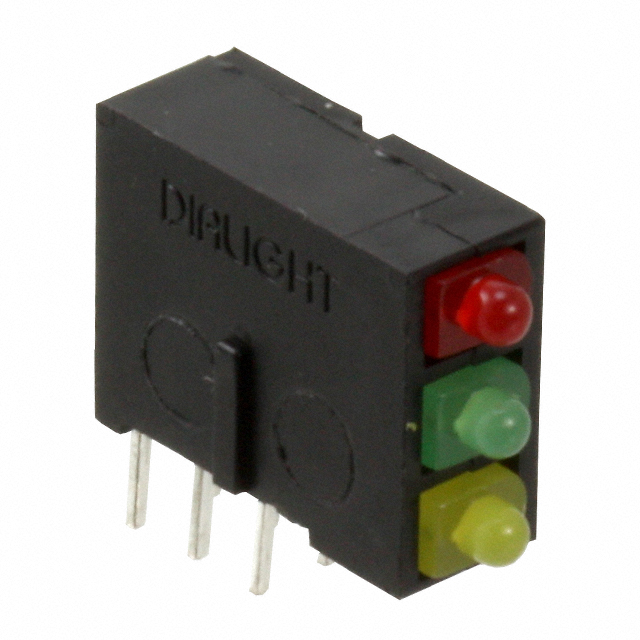

5700100123F
Or copy the link below:
- Mfr.Part #
- 5700100123F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED CBI 2MM 3X1 RED,GRN,YLW DIFF
- Stock
- 625
- In Stock ：
- 625
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Packaging :
- Bulk
- Mounting Feature :
- RADIAL MOUNT
- Configuration :
- 3 High
- Millicandela Rating :
- 10mcd Green, 15mcd Red, 8mcd Yellow
- Terminal Finish :
- Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)
- Color :
- Green (x 1), Red (x 1), Yellow (x 1)
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 10 Weeks
- Viewing Angle :
- 70°
- Published :
- 2011
- Overall Height :
- 10.17mm
- Number of Functions :
- 3
- Series :
- 570
- Operating Temperature (Min) :
- -40°C
- Lens Style :
- Round with Domed Top
- Current :
- 25mA Green 30mA Red 30mA Yellow
- Terminal Pitch :
- 2.55mm
- Surface Mount :
- No
- Lens Type :
- Diffused
- Lens Size :
- 2.90mm Dia
- Wavelength - Peak :
- 565nm 627nm 590nm
- Luminous Intensity :
- 15.0/15.0 mcd
- JESD-609 Code :
- e2
- Optoelectronic Device Type :
- TRIPLE COLOR LED ARRAY
- Operating Temperature (Max) :
- 85°C
- RoHS Status :
- ROHS3 Compliant
- Number of Terminations :
- 6
- HTS Code :
- 8541.40.20.00
- Packing Method :
- Bag
- Voltage - Rated :
- 2.2V Green 2V Red 2.1V Yellow
- Datasheets
- 5700100123F
5700100123F datasheet pdf and LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs product details from Dialight stock available at
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
