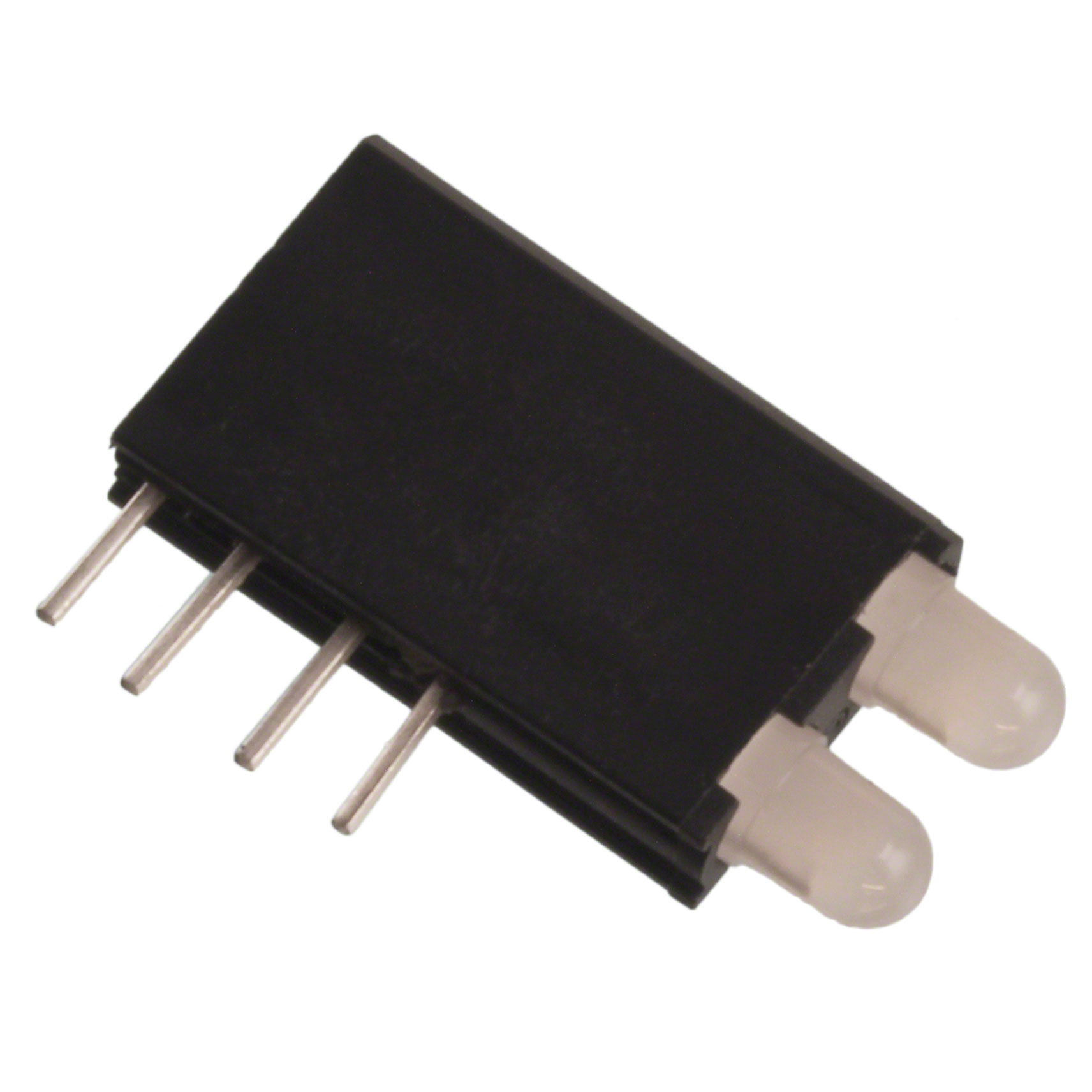

5690711100F
Or copy the link below:
- Mfr.Part #
- 5690711100F
- Manufacturer
- Dialight
- Package / Case
- Datasheet
- Download
- Description
- LED CBI 3MM BI-LEVEL R/G,R/G
- Stock
- 28,244
- In Stock ：
- 28,244
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Dialight
- Product Category :
- Overall Height :
- 8.88mm
- Configuration :
- 2 High
- T-code :
- T-1
- HTS Code :
- 8541.40.20.00
- Lens Style :
- Round with Domed Top
- Mounting Feature :
- RADIAL MOUNT
- Lens Type :
- Clear
- Wavelength - Peak :
- 565nm 635nm
- Luminous Intensity :
- 4.7 mcd
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature (Max) :
- 100°C
- Published :
- 2008
- Number of Terminations :
- 4
- Millicandela Rating :
- 10mcd Green, 4.7mcd Red
- Series :
- 569
- Operating Temperature (Min) :
- -55°C
- Number of Functions :
- 2
- Surface Mount :
- No
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 2.1V Green 2V Red
- Lens Size :
- 2.85mm Dia
- JESD-609 Code :
- e4
- Mounting Type :
- Through Hole, Right Angle
- Packing Method :
- Bag
- Terminal Finish :
- Copper/Nickel/Silver (Cu/Ni/Ag)
- Color :
- Green, Red (x 2)
- Terminal Pitch :
- 2.55mm
- Factory Lead Time :
- 10 Weeks
- Viewing Angle :
- 60°
- Optoelectronic Device Type :
- DUAL COLOR LED ARRAY
- Current :
- 20mA
- Datasheets
- 5690711100F
